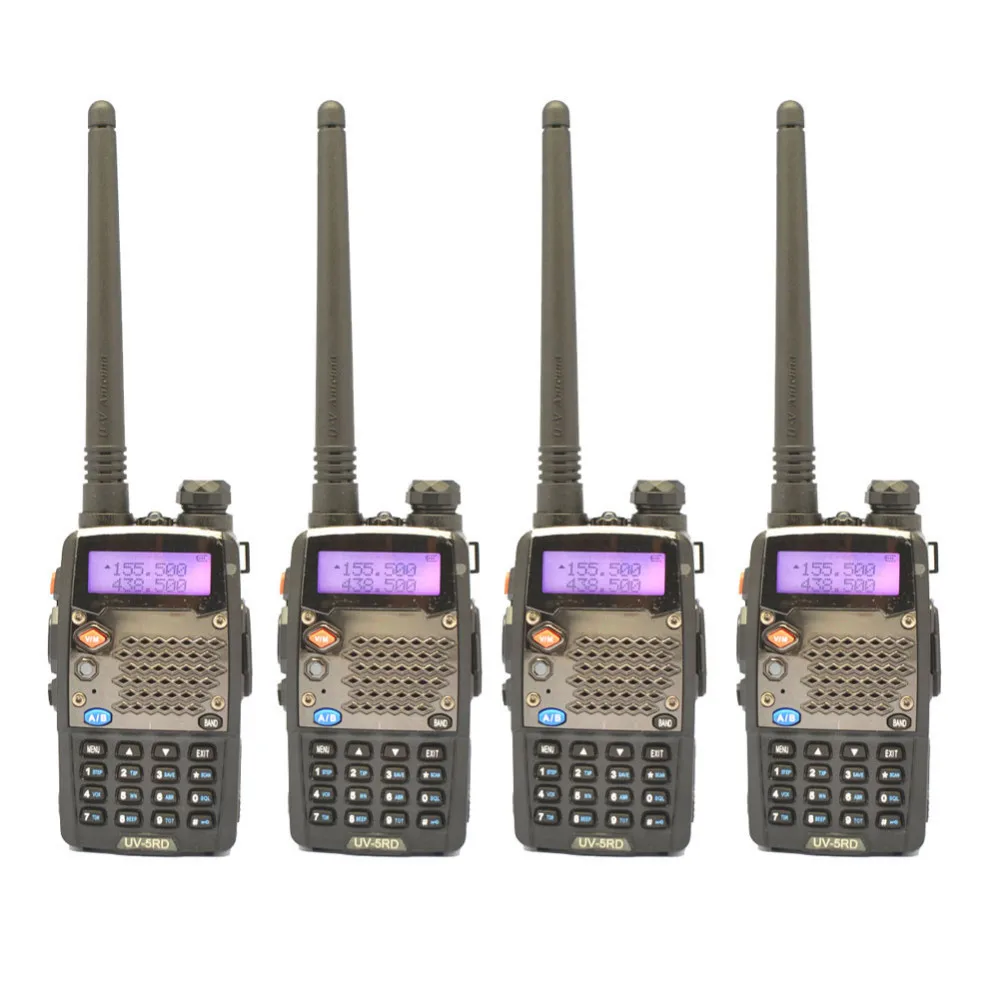

New Black BaoFeng UV-5RD Dual Band Two Way Radio 136-174MHz&400-520 MHz Walkie talkie with free shipping
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-520MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels
50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- Hight /Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
- SMA-FEMALE ANTENNA
- ALL ORIGINAL PARTS from BAOFEN
Dual band, dual display, dual standby | A/B band independent operation |
128 groups channels storage | Shortcut menu operation mode |
VFO & Memory channels scan | Emergency Alarm |
Tri-color background light selectable | 0~9 grades VOX selectable |
PTT & ANI ID | FM radio |
Voice companding | CTCSS/DCS coder |
PC programmable | |
Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
High/Low TX power selectable | Busy channel lock-out(BCLO) |
Specifications:
Item number | UV-5R |
General | |
Frequency Range | 65-108MHz (FM Receive only) |
136-174MHZ and 400-520Hz (TX/RX) | |
Channel No. | 128 |
Frequency Stability | ±2.5ppm |
Antenna | High gain DualBand antenna |
Antenna Impedance | 50 |
Operating Voltage | DC 7.4V |
Mode of operation | Simple or semi-duplex |
DimensionW x H x D | 110 x 58x 32 mm |
Weight | 250gincluding battery, antenna |
Transmitter | |
Output power | 4W / 1W (Max 5W) |
Modulation Mode | 16kF3E / 11kF3E |
Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
Spurious Radiation | 7W |
Adjacent Ch. power | -65dB(Wide) / -60dB(Narrow) |
Pre-emphasis characteristics | 6dB |
Current | 1.6A(5W) |
CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
Intermediation sensitivity | 8-12mv |
Intermediation distortion | 10% |
Each Set PACKAGE CONTAIN
- 4 x UV-5RD (VHF136-174Mhz UHF 400-520Mhz)
- 4 x 7.4V 1800mah Li-ion Battery Pack
- 4 x Antenna 136-174/400-520Mhz
- 4 x Belt Clip
- 4 x ENG Manual
- 4 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 4 x PTT Earpiece for free
