4PCS BaoFeng UV-5RE Walkie Talkie VHF/UHF136-174Mhz&400-520Mhz Dual Band Two way CB radio Baofeng Handy Portable uv5re
The power and the quality of two way radio, the antenna you used, the battery power, the way you use two way radio, the environment and so on will affect the talking range.

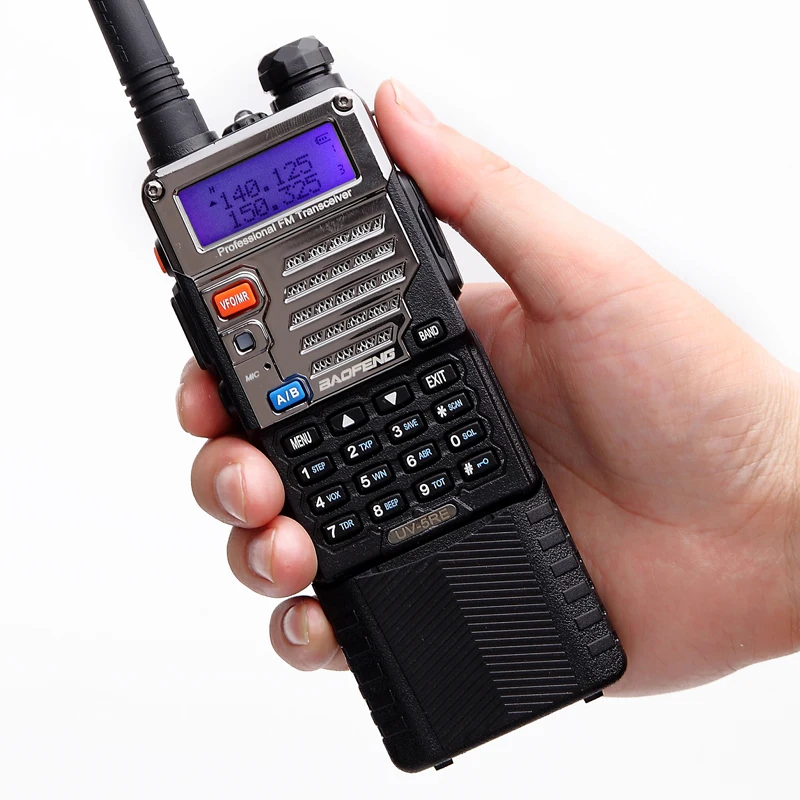

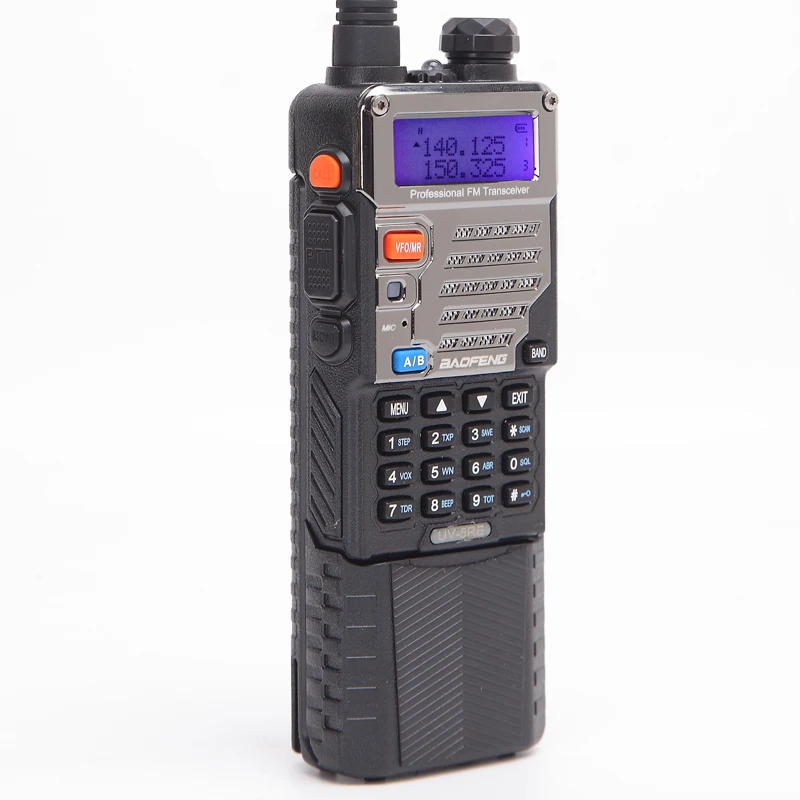

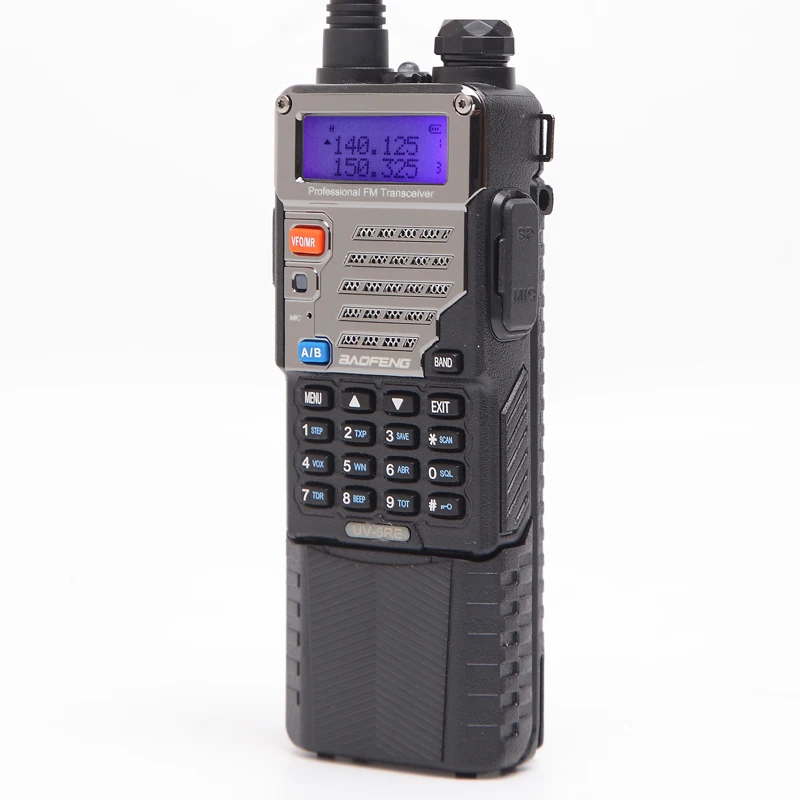

Black：

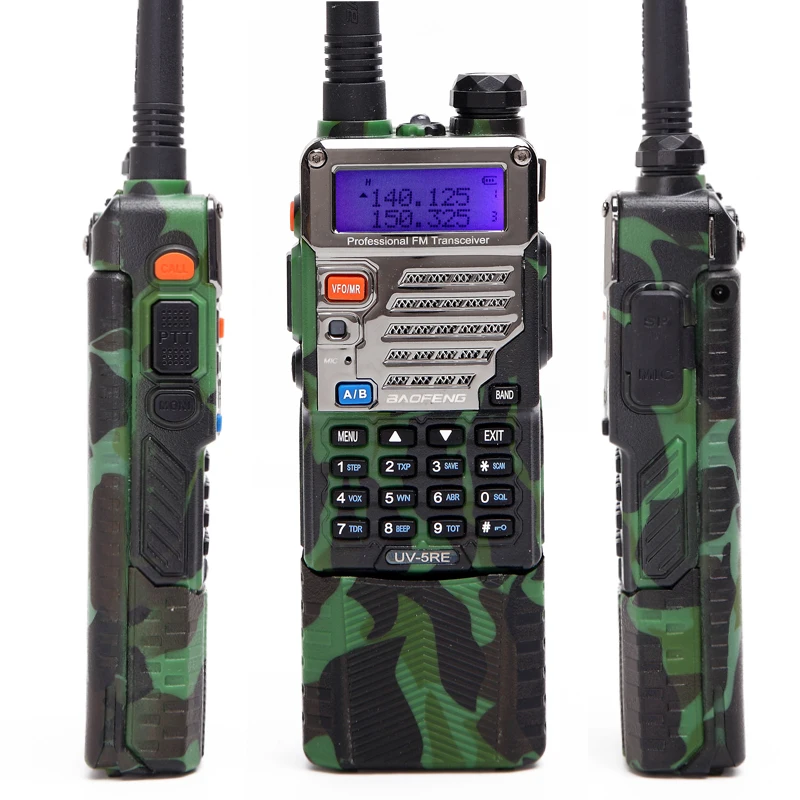

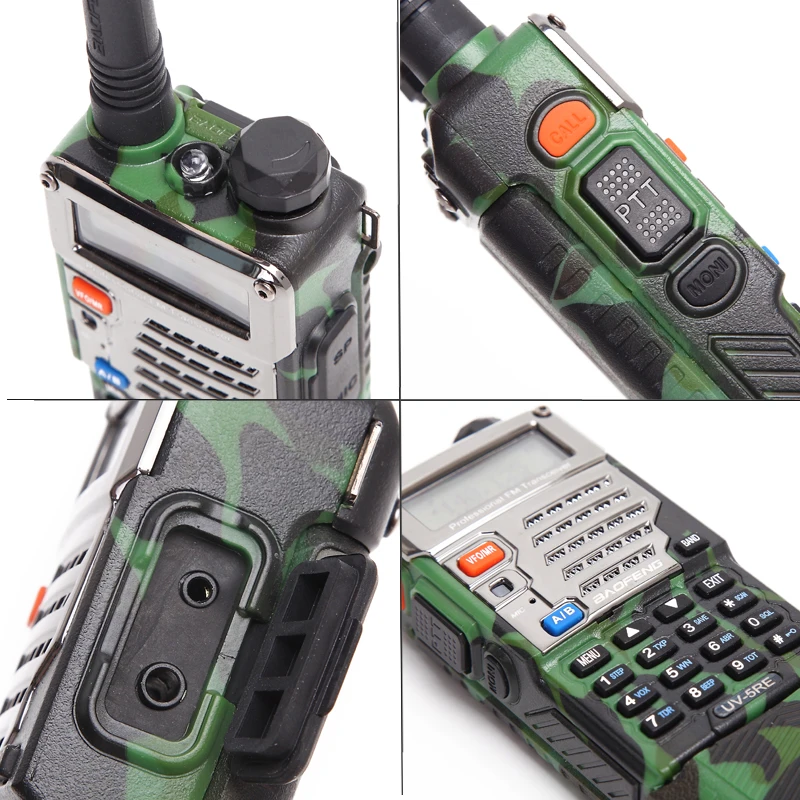

camouflage:
Product Description:
|
Model |
UV-5RE5W |
|
|
Features |
||
|
Dual band/ dual display/ dual standby |
A/B band independent operation (UV UU VV VU) |
|
|
128 groups channels storage |
136-174MHz & 400-520MHz |
|
|
Shortcut menu operation mode |
Emergency Alarm |
|
|
Transmitter time-out timer(TOT) |
VOX (0~9 grades) |
|
|
PTT & ANI ID |
FM radio (65-108MHz) |
|
|
Voice COMP |
50 CTCSS/ 104 DCS |
|
|
TX power selectable (4W/1W) |
Busy channel lockout |
|
|
LED Flashlight |
Large LCD Display |
|
|
Wide/Narrow Band |
Yes |
25kHz/12.5kHz |
|
Frequency step |
Yes |
2.5/5/6.25/10/12.5/25KHz |
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display & editing |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Flashlight |
Yes |
|
|
Wire clone function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
ROGER SET |
Yes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Basic Descriptions |
||
|
Rated Voltage |
7.4V DC ±10% |
|
|
Max output power |
5W |
|
|
Battery type |
Li-ion battery |
|
|
Battery capacity |
1800/2800/3800 mAh |
|
|
Earpiece / MIC type |
2 Pin KEN WOOD Type |
|
|

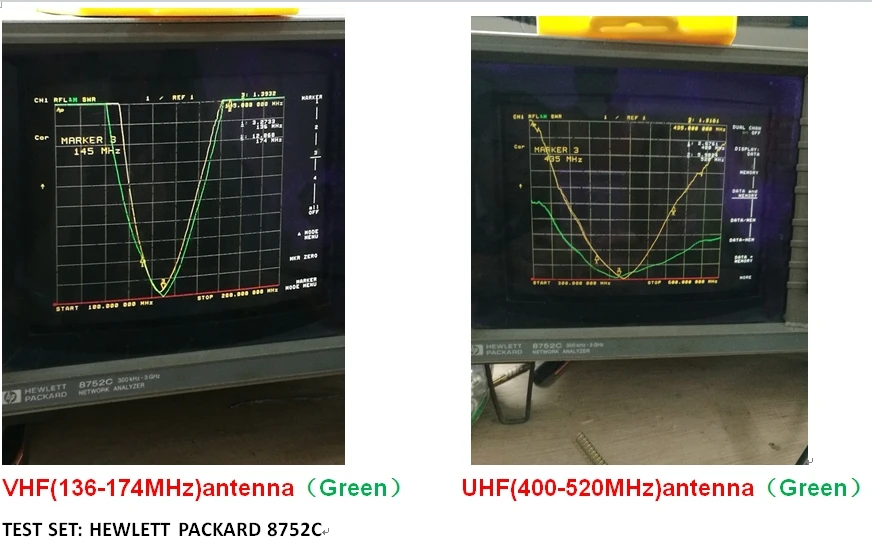

Antenna |
3 Pieces Antenna (SMA-Female) |
|
|
Working temperature |
-20~+50°C |
|
|
Antenna Impedance |
50 OM |
|
|
Weight |
250/270/290g |
|
|
Dimension ( L x W x H ) |
58 x 32 x 110 mm (Not Antenna&Battery ) |
|
|
Specification |
||
|
Frequency stability |
±2.5ppm |
|
|
Modulation |
F3E |
|
|
Max frequency deviation |
<= 5kHz(Wide) |
|
|
Emission current |
<=1.6A |
|
|
CTCSS / DCS |
0.5 ± 0.1kHz(Wide) |
|
|
Spurious Radiation |
<7uW |
|
|
Intermediation Distortion |
<10% |
|
|
Intermediation sensitivity |
8-12mv |
|
|
Adjacent channel selectivity |
<= 65dB(Wide) |
|

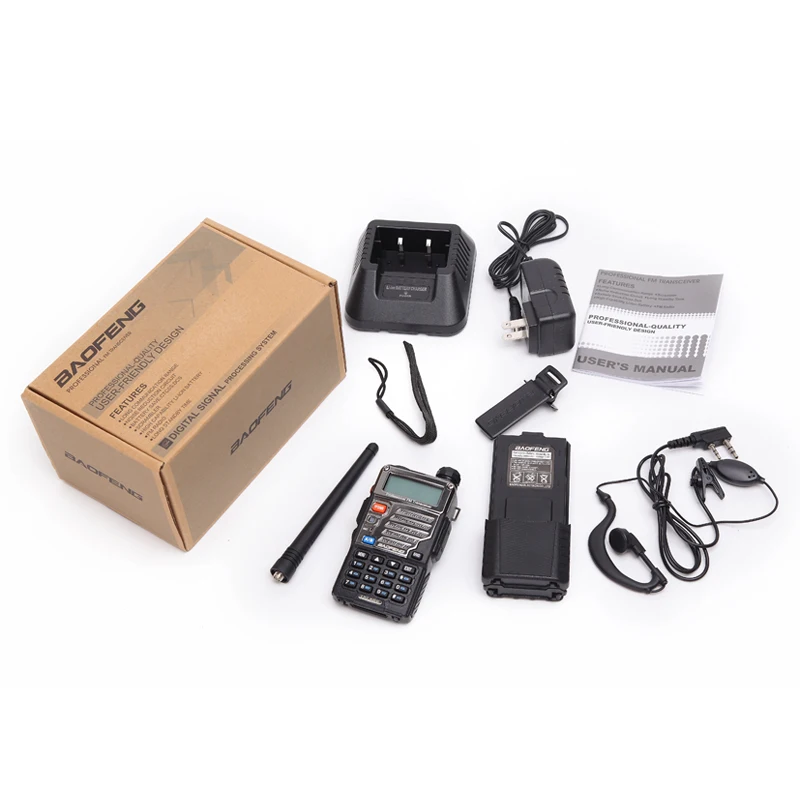

Package contents:
4 x Portable Radio
4 x Antenna
4 x Li-ion Battery Pack(7.4V, 1800/2800/3800mAh)
4 x Charger and Adapter(European plug, US plug, UK plug, Australian plug)
4 x Ear Hook Earphone
4 x Belt Clip
4 x Sling
4 x User’s Manual
