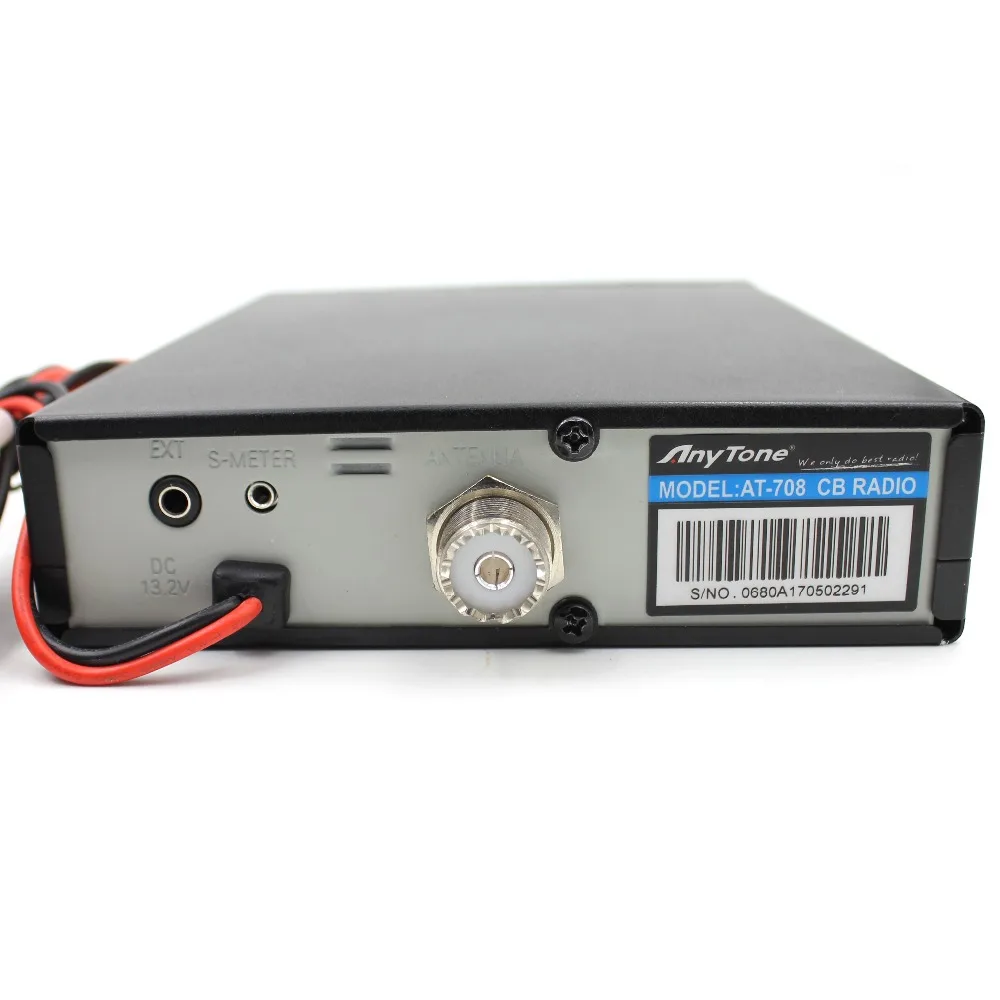

Anytone AT-708 CB Radio 8W 27MHz FM High Quality Car Mobile Radio Station Communciator
| TECHNICAL SPECIFICATIONS | |
| GENERAL | |
| Channels | 480AM-480FM |
| Frequency Range | 24.265-29.655MHZ |
| Frequency Control | PLL |
| Operating Temperature Range | 10*/+55° C |
| DC input voltage | 13.2V DC +15% |
| Size | 180 (L)x35 (H)x140 (P) mm |
| Weight | 0,850 kg |
| RECEIVER | |
| Recelving system | dual conversion superheterodyne |
| Intermediate frequency | 1° IF: 10.695 MHz●I° IF: 455 KHz |
| Sensitvity | 0.5μV for 20 dB SINAD in FM mode 0.5μV for 20 dB SINAD in AM mode |
| Audio output power @10% THD | 2.0W@ 8ohm |
| Audio distortion | less than 8% @1 KHz |
| Image rejection | 65 dB |
| Adjacent channel rejection | 65 dB |
| Signal/Noise ratio | 45 dB |
| Current drain at stand/by | 250mA |
| TRANSMITTER | |
| Output power | 8W @ 13.2V DC |
| Modulation | AM: from 85% to 95% FM: 1,8 KHz土0,2 KHz |
| Frequency response | from 400 Hz to 2.5 KHz |
| Output impedance | RF 50 Ohm unbalanced |
| SignalNoise Ratio | SignalNoise Ratio |
| Current drain at stand/by | 1100mA (Power position with no modulation) |
