BAOFENG BF-A58 Professional Waterproof Walkie Talkie Portable UV Dual Band Two Way Radio
Specification:
General
Frequency Range VHF:136-174MHz UHF400-520MHz
Channel Capacity: 128
Channel Spacing: 25KHz/12.5KHz
A ntenna Impedance: 50Ω
Microphone Impedance: 600Ω
Operating Voltage: 7.4V DC
Frequency Stability: ±2.5ppm
Battery: 2200mAh(Polymer Li-ion)
Compatible With American Military Standard:(Mil-STD-810C/D/E)
Transmitter:(EIA-RS 316B STANDARD)
RF Power Output :8W
Modulation Type :FM
Modulation Sensitivity: <15µV
Modulation Distortion: ≤3%
Max Freq Deviation: <5KHz
Occupied Bandwidth: ≤16KHz
Modulation Feature: ±3dB
Spurious Radiation: ≤7.5μW
Adjacent Channel Power: ≤-65dB
Receiver
Sensitivity(12db SINAD): ≤0.15μ(12dB S/N)
Squelch Sensitivity :≤0.1μV
Audio Power output: 1W/16Ω
Audio Respond: -6
Operation Bandwidth ;>5KHz
Co-channel Rejection :≥-8dB
Blocking: ≥85dB
Adjacent Channel Selectivity: ≥65dB
Standby Current :60mA,15mA
Spurious Rejection: ≥60dB
Intermodulation Resistance: ≥60dB

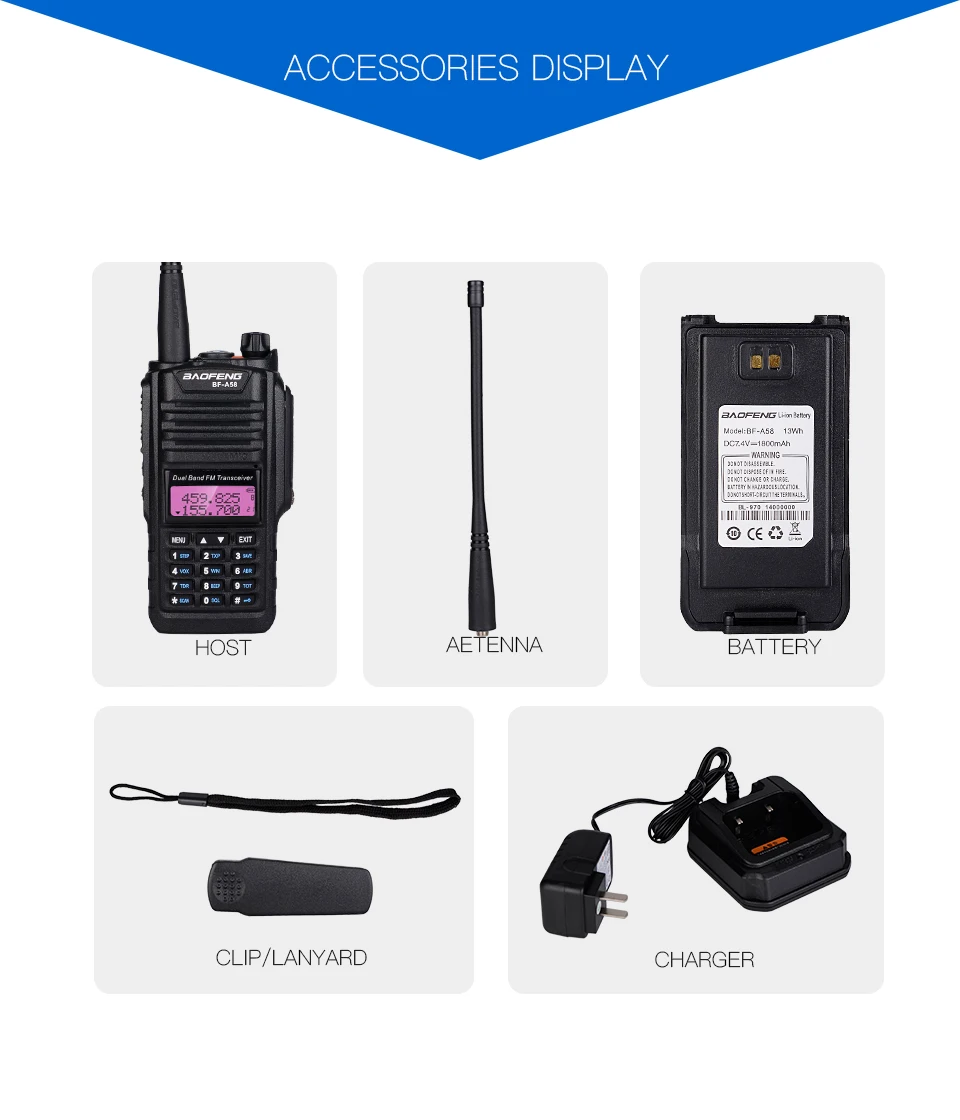

Standard Package includes:
1 X Portable radio BF-A58
1 X Antenna
1 X Charger
1X Belt clip
1 X The sling
1 X User’s manual
