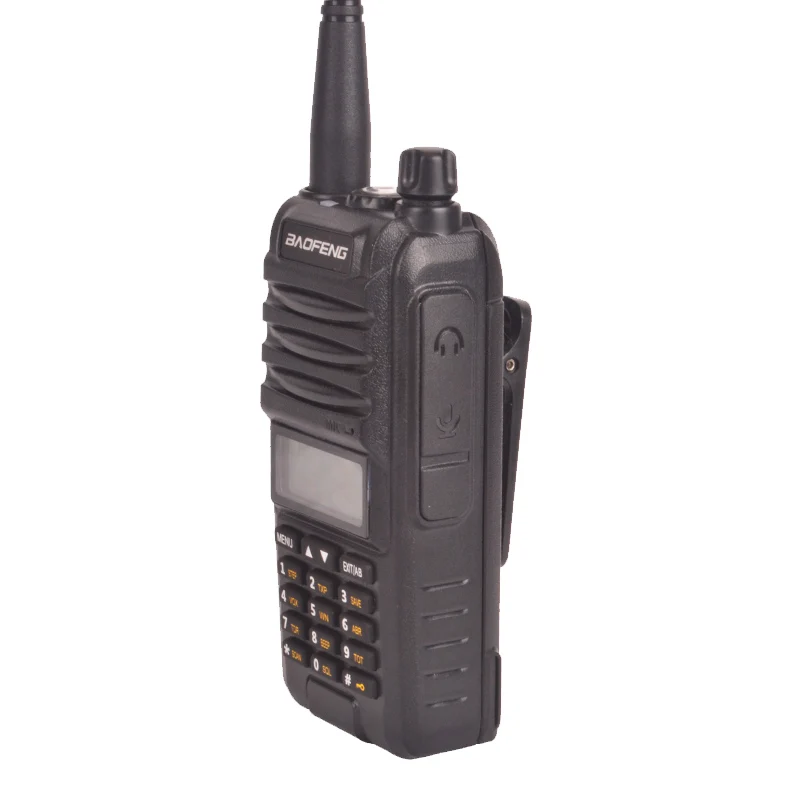

Baofeng BF-A58S Tri-band Ham Radio 136-174/400-520/200-260MHz Walkie Talkie

$83.94 $30.78

Black
Black
Euro
Euro
American
American
Clear
SKU: 4000133926160 Categories: , Tags: ,

Description

Baofeng ham Radio BF-A58S tri-band FM two way radio 136-173.975MHz/200-259.975MHz/400-519.975MHz 128CH handheld Transceiver with free Handsfree

Features:

Tri-band 136-173.975MHz/200-259.975MHz/400-519.975MHz

Dual display, Dual Standby

FM Radio 65-108MHz

2800mAh 7.4V high capacity Li-ion battery pack

TDR

Roger Beep

VFO & Memory Channels

DTMF encoded

VOX (Voice operation Transmission)

Up to 128 memory channels

Low battery alarm function

DCS and CTCSS

Broad band (Wide)/Narrow band (Narrow selectable

Built-in Flashlight

Scan function

Keypad lock

Power Saveing function

BCLO Busy channel Lock-out

Emergency Alarm

PTT & ANI ID

Time-Out Timer (TOT)

Channel Name display and edit

OFF SET FUNCTION

ENGLISH VOICE PROMPT

PC SOFTWARE PROGRAMMABLE  & Manual Programmable by keypad on the radio

Specifications:





General

Frequency Range

65-108MHz(Only commcercial FM radio reception)

VHF:136-173.975MHz & 200-259.975MHz

UHF:400-519.975MHz

Memory Channels

128

Frequency stability

2.5ppm

Frequency Step

2.5/5/6.25/10/12.5/20/25/50KHz

Antenna impedance

50 ohm

Operating temperature

-20°C to +60°C

Supply Voltage

2800mah DC7.4V li-ion battery pack

Consumption in standby

≤75mA

Consumption in reception

380mA

Consumption in Transmission

≤1.4A

Mode of operation

Simplex or semi-duplex

Duty Cycle

03/03/54 min. (RX/TX Standby)

Dimensions

65mm*133mm*41.5mm

Weight

279g (approximate)

Transmitter

RF Power

4W/1W

Type of modulation

FM

Emission class

16K Ø F3E/11K Ø F3E(W/N)

Maximum deviation

≤±5kHz/ ≤±2.5KHz(W/N

Spurious emissions

-60dB

Receiver

Receiver sensitivity

0.2µV (at 12dB SINAD)

Intermodulation

60dB

Audio Output

1000mW

Adjacent channel selectivity

65/60dB

Note: All specifications shown are subject to change without notice



Package Contains:

1× BF-A58S Tri-Band Radio Body (VHF136-173.975,200-259.975MHz & UHF 400-520Mhz)

1× 7.4V 2800mah Li-ion Battery Pack

1×  Antenna

1× Belt Clip

1× ENG Manual

1× Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country

1× Handsfree

1× Handstrap
