Baofeng BF-E500S 136-174MHz & UHF400-520MHz Dual Band 5W/1W 128CH FM 65-108MHz with Free Earphone Portable Two-way Radio
Features:
- Frequency Range:136-174 & 400-520MHz
- Dual Band, Dual Display, Dual Frequency,Dual Standby
- Output Power:5/1Watt
- 128 Storage Channels
- 50 CTCSS and 104 CDCSS
- Buit-in Vox Function
- 1750Hz Brust Tone
- FM Radio(65.0MHz-108.0MHz)
- LED Flashlight
- Larger LCD Display
- High/Low RF Power Switchable
- 25KHz/12.5KHz Switchtable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step:2.5/5/6.25/10/12.5/25KHz
- PC Programming
Specifications:
|
Main functions |
|
|
Dual band, dual display |
A/B band independent operation |
|
128 groups channels storage |
Shortcut menu operation mode |
|
VFO & Memory channels scan |
Emergency Alarm |
|
Tri-color background light selectable |
0~9 grades VOX selectable |
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
1750Hz Brust Tone |
Time-out Timer |
|
Channel Monitor |
Battery Saver |
|
Keypad Lock |
Channel Step: 2.5/5/6.25/10/12.5/25KHz |
|
Low Battery Alert |
ROGER SET |
|
Emergency Alert |
25KHz/12.5KHz Switchable |
|
FM Radio (65.0MHz-108.0MHz) |
Large LCD Display |
|
LED Flashlight |
Hight /Low RF Power Switchable |
|
Voice companding |
50 CTCSS/ 104DCS coder & tone searching |
|
dual standby |
PC programmable |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Transmitter time-out timer(TOT) |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
Specifications |
|
|
General |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520MHZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension(W x H x D) |
100 x 52 x 32 mm |
|
Weight |
250g(including battery, antenna) |
|
Antenna : |
SMA -Female |
|
Earpiece / mic type : |
Kenwood Plug type |
|
Transmitter |
|
|
Output power |
5W / 1W (Max 5W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
5kHz(Wide) / 2.5kHz(Narrow) |
|
Spurious Radiation |
7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
≤10% |
|

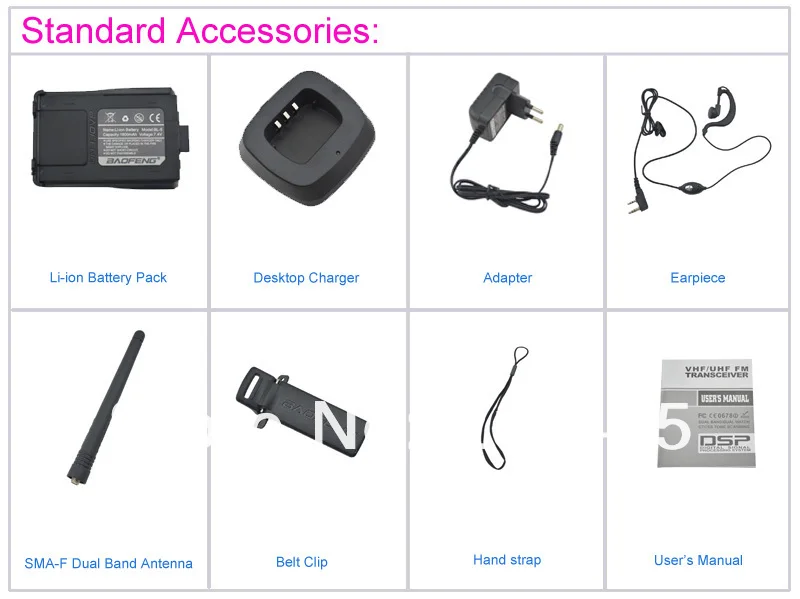

PACKAGE Contents: |
|
|
1 x BF-E500S (VHF136-174 & UHF 400-520Mhz) |
|
|
1 x 7.4V 1800mah Li-ion Battery Pack |
|
|
1 x SMA-Female Dual Band Antenna |
|
|
1 x Belt Clip |
|
|
1 x ENG Manual |
|
|
1 x Desktop Charger ( 100V ~ 240V ) with Correct Adapter for your Country 1× Handstrap 1 x K- plug Earpiece |
|
