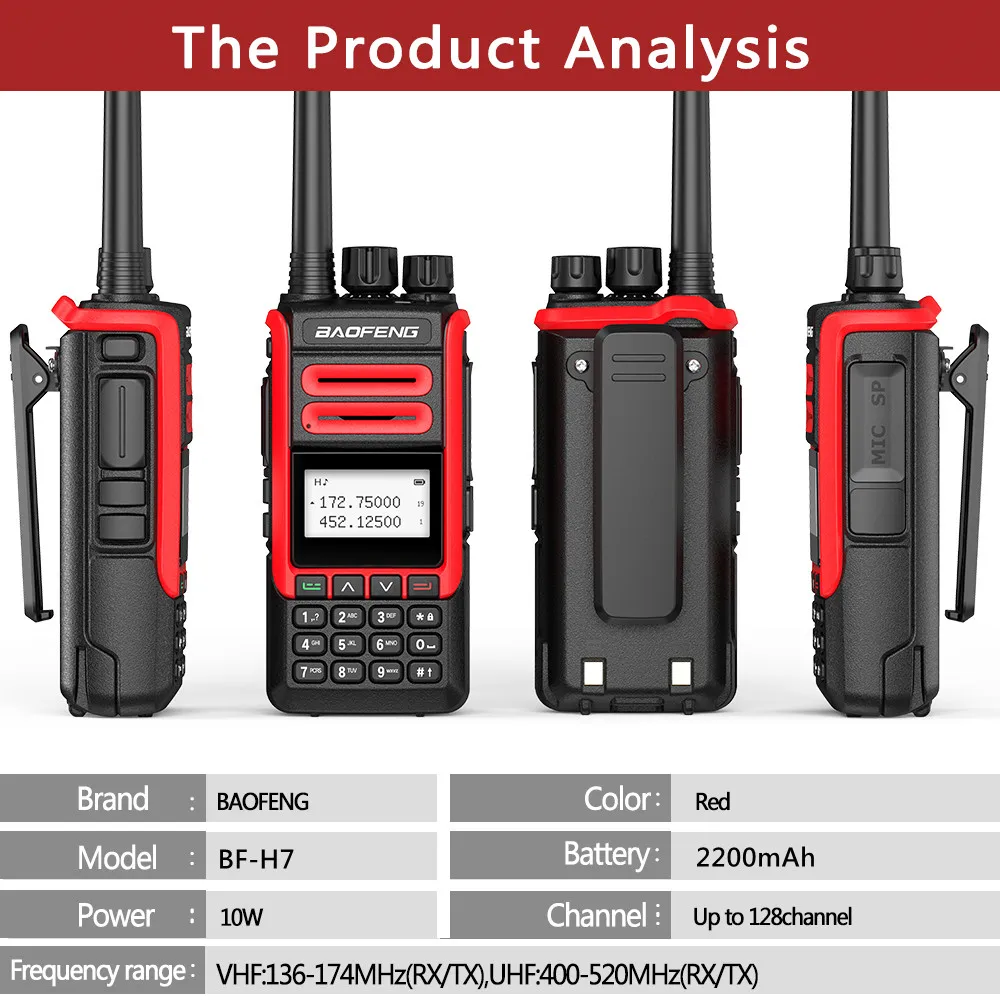

Baofeng BF-H7 Powerful Walkie Talkie 10W Portable CB Radio FM Transceiver Dual Band Two Way Radio For Hunt Forest
·【Long Range Communication】Professional Ham Radio: Frequency range:VHF:136-174MHz(RX/TX),UHF:400-520MHz(RX/TX),Up to 128 channels. Dual-band handheld transceiver with display function menu on the display “LCD”. This solid 10W Power radio can reach further and receives strong signals.
·【Power Source】Rechargeable Li-ion Battery packs:Equipped with 1pack Original 2200mAh Battery +Battery Charger ,Support 24 hours continual communication.
·【Slight And Portable】Large LCD display ,LED flashlight,Charge LED:transmission(red)/reception(green);Standard size flexible use in the band.
·【VOX – Hands Free Function】Hands-free function,can clearly transmit voice in noisy situation, support you to talk in any where, take it easy with you.
Product Description:
All of our items are Brand New |
||
Model |
BF-H7 |
|
Dual band /dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
128 groups channels storage |
Shortcut menu operation mode |
|
Memory channels scan |
Time/ Carrier / Search Operation |
|
Emergency Alarm |
Indicator and flashlight Flashing Together |
|
Time-out Timer (TOT) |
15-600/Stepping 15 |
|
Squelch Level(SQL) |
0-9 Grade |
|
PTT & ANIID |
ON OFF/0-9;A-F |
|
Voice companding |
50 CTCSS/104 DCS |
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
DTMF ST function |
DT+ANI/ANI-ST/DT-ST/OFF |
|
Dual PTT |
Yes |
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
VOX function |
Yes |
OFF/1-10 |
1750HZ Tone |
Yes |
|
Busy lockout function |
Yes |
|
Scanning function |
Yes |
|
Monitor function |
Yes |
|
Time-out Timer (TOT) function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Dual Standby |
Yes |
|
Battery voltage display function |
Yes |
|
Channel name display and editing functions |
Yes |
|
Signal strength indicator |
Yes |
|
Keypad lock function |
Yes |
|
Built-in Led torch |
Yes |
|
FM radio |
Yes |
65-108MHZ(Reception) |
Emergency alarm function |
Yes |
|
Low battery alarm |
Yes |
|
Power saving function |
Yes |
|
High/Low TX power selectable |
Yes |
10W |
ROGER SET |
Yes |
FULL/MGS |
Chinese and English voice prompt |
Yes |
|
Wire clone function |
Yes |
|
PC software programmable |
Yes |
|
General Specifications |
||
Frequency stability |
±2.5ppm |
|
Frequency Step |
2.5/5/6.25/10/12.5/20/25KHz |
|
Antenna Impedance |
50ohm |
|
Working temperature |
-20~+50°C |
|
Rated Voltage |
7.4V DC±10% |
|
Output power |
<= 10W |
|
Battery type |
Li-ion battery |
|
Battery capacity |
2200mAh |
|
Headphone jack type |
2 Pin Kenwood Plug |
|
Antenna Type |
SMA-(Female) |
|
Mode Of Operation |
Simplex Or Semi-duplex |
|
Weight |
130g(approximate) |
|
Dimension(LXWXH) |
130X55X30mm(Not Antenna) |
|
Transmitter |
||
Type Of Modulation |
16køF3E / 11køF3E |
|
Max frequency deviation |
< 5kHz(Wide)/< 2.5kHz(Narrow) |
|
Emissioncurrent |
<= 1.5A(5W) |
|
CTCSS / DCS |
0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow) |
|
Reception |
||
Sensitivity |
-122dBm(12dB SINAD) |
|
Audio Power |
1W |
|
Intermediation Distortion |
<10% |
|
Inter modulation |
>=65Db/>=60dB |
|
Spurious response |
65dB |
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|
Receiving Current |
<=380mA |
Package include:
1 X Portable radio
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X The Sling
1 X Headset
1 X User’s manual
(And other accessory depend on your choice in the link)
