Sale!

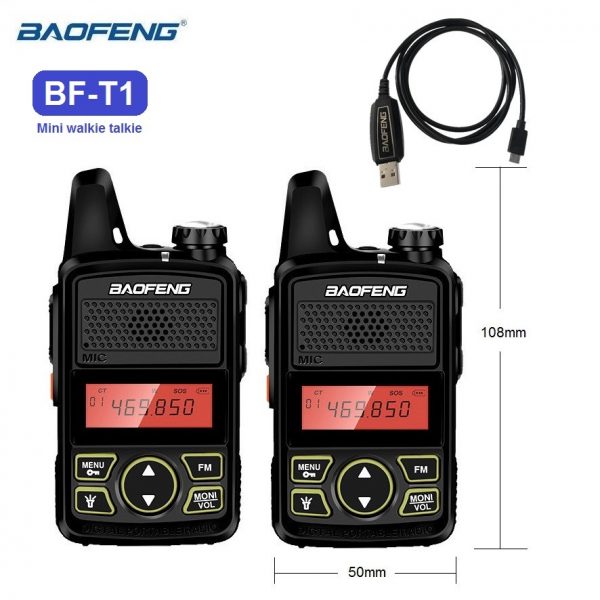

Baofeng BF-T1 Mini Walkie Talkie Kids UHF Amateur Transmitter

$19.55$85.29

SKU: 4001076796785

Description



1/2/3/4/5 pcs BAOFENG BF-T1 Mini Walkie Talkie Kids Toy UHF Radio Transceiver bf t1 CB Ham Radio Amateur Transmitter BAOFENG T1

Functions:

Broadcast FM radio receiver (65-108Mhz)

Alarm and built-in LED flashlight

Max 20 channels

Time count down (0.5 / 1hr / … / 8hrs)

Voice prompt

VOX (voice activated transmission)

50 CTCSS tone / 104 DCS code / nonstandard tone available

Tail tone elimination

Battery saving

Width / Narrow band selection

SOS call notice

PC programming (programming cable not included)

Technical index:

Frequency Range : UHF 400-470MHz

RF Rated Power : 0.5W/1W​

Step frequency: 12.5 / 25Kz

Channel Capacity : 20

Operated Voltage : 3.7 V

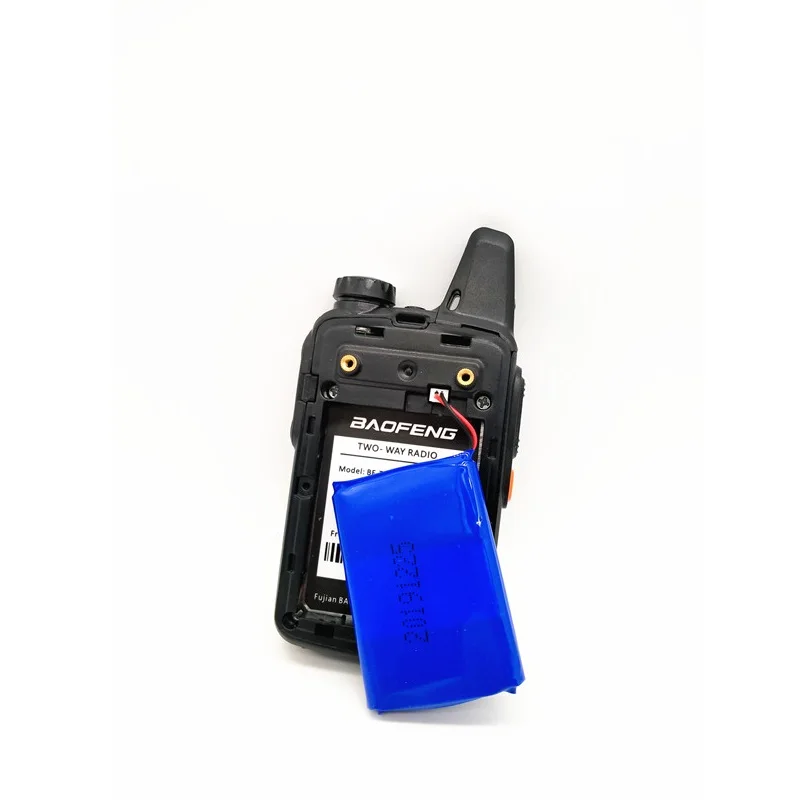

Battery : 1500MAh Li-ion

Frequency Stability : ±2.5ppm

Operated Temperature : -30°c-+60°c​

Antenna Impedance : 50Ω

Transmitter:

Modulation Mode: 16kΦF3E / 11kΦF3E​

Maximum deviation: ≤5kHz(Wide) /≤2.5kHz(Narrow)

Spurious Radiation: ≤7.5μW

Adjacent Ch. Power: ≤-65dB(Wide) / ≤-60dB(Narrow)

Audio Distortion: < 5%

SNR: ≥ -45dB / ≥ -40dB

CTCSS/DCS Frequency deviation (W/N Band): 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)

Intermediation sensitivity: 8-12mV

Transmitting Current: ≤ 1000mA

Receiver:

Sensitivity: < 0.25μ V (12dB SINAD)

Audio Power: 1W

Inter modulation Interference Resistance: ≥ 65dB (W) , ≥ 60dB (N)

Adjacent channel Selectivity (W/N Band): ≥ 65dB (W) , ≥ 55dB (N)

Audio Distortion: 5%​

Receiving current: ≤ 380 mA

Additional information

Color

1pc, 2PCS, 3PCS, 4PCS, 5PCS, cable only

Plug Standard

American, Chinese, Euro
