BAOFENG TWO WAY RADIO UV-5RB DUAL BAND VHF UHF 136-174MHz 400-520MHz ham handheld FM walkie talkie with earpiece
Features & Functions:
- Dual-band handheld transceiver with display function menu on the display “LCD”
- DTMF encoded
- Lithium-ion battery with high capacity 1800mAh
- Commercial FM radio receiver(65MHz~108MHz)
- Incorporates 105 codes ”DCS” and 50 privacy codes “CTCSS” programmable
- Function “VOX” (VOICE OPERATED TRANSMISSION)
- Alarm function
- Up to 128 memory channels
- Broadband (Wide)/Narrow band (Narrow) selectable
- High power(5W)/Low (1W) selectable
- Display illumination and programmable keyboard
- Function “Beep” on the keyboard
- Dual Watch/dual reception
- Selectable Frequency step 2.5/5/6.25/10/12.5/25KHz
- Function “OFFSET” (frequency offset for repeater access)
- Battery saving function “SAVE”
- Timer transmission “TOT” programmable
- Selecting the scan mode
- Built-in RX CTCSS/DCS Scan
- Function Busy Channel Lock “BCLO”
- Built-in LED flashlight
- Programmable by PC
- Level Threshold “Squelch” adjustable from 0 to 9.
- Cross band reception
- Tone end of transmission
- Built-in key lock
Specifications:
|
General |
|
|
Frequency Range |
65-108MHz(Commercial FM radio reception only) VHF:136-174MHz & UHF:400-520MHz (RX/TX) |
|
Memory Channels |
Up to 128 channels |
|
Frequency Stability |
2.5ppm |
|
Frequency Step |
2.5/5/6.25/10/12.5/25KHz |
|
Antenna Impedance |
50 ohm |
|
Operating Temperature |
-20°c to +60°c |
|
Supply Voltage |
DC7.4V 1800mAh Rechargeable Lithium-Ion |
|
Consumption in standby |
≤75mA |
|
Consumption in reception |
380mA |
|
Consumption in transmission |
≤1.4A |
|
Mode of operation |
Simplex or semi-duplex |
|
Duty Cycle |
03/03/54min(RX/TX/Standby) |
|
Dimensions |
58*110*32mm |
|
Weight |
130g (approximately) |
|
Transmitter |
|
|
RF Power |
4W/1W |
|
Type of modulation |
FM |
|
Emission Class |
16K Ø F3E/11K Ø F3E(W/N) |
|
Maximum deviation |
≤±5kHz/≤±2.5kHz (W/N) |
|
Spurious Emissions |
<-60dB |
|
Receiver |
|
|
Receiver Sensitivity |
0.2uV (at 12dB SINAD) |
|
Intermodulation |
60dB |
|
Audio output |
1000mW |
|
Adjacent channel selectivity |
65/60dB |
Note:
- All specification shown are subject to change without notice.
Package Contain:
1× baofeng UV-5RB Dual band radio
1× 7.4V 1800mAh Li-ion Battery Pack
1× dual band portable Antenna
1× Battery belt clip
1× Desktop Charger with AC adapter
1× Headphone
1× Hand strap
1× ENG Manual

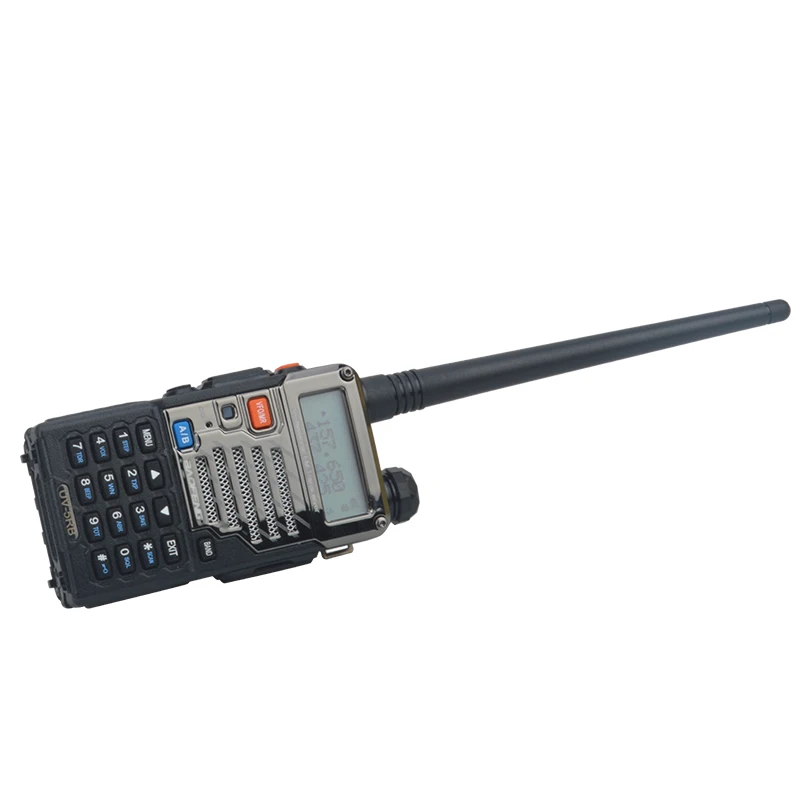

Photos:
