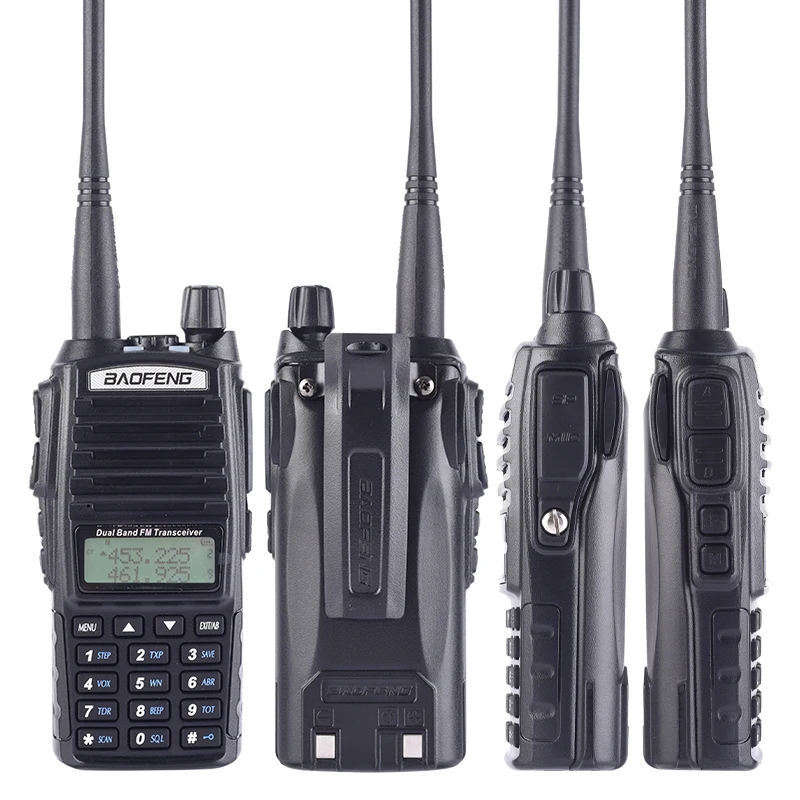

BaoFeng UV-82 Ture 8W Walkie Talkie Dual-Band 136-174/400-520 MHz FM Ham Two Way Radio Vhf Uhf , Hunting Transceiver, UV82 8W
| Frequency Range: 136-174 & 400-520MHz | Dual Band, Dual Display, Dual Frequency,Dual Standby |
| Dual band, dual display | A/B band independent operation |
| 128 groups channels storage | Shortcut menu operation mode |
| VFO & Memory channels scan | Emergency Alarm |
| Tri-color background light selectable | 0~9 grades VOX selectable |
| PTT & ANI ID | FM radio and 25 stations storage |
| 1750Hz Brust | Tone Time-out Timer |
| Channel Monitor | Battery Saver |
| Keypad Lock | Channel Step: 2.5/5/6.25/10/12.5/25KHz |
| Low Battery Alert | ROGER SET |
| Emergency Alert | 25KHz/12.5KHz Switchable |
| FM Radio (65.0MHz-108.0MHz) | Large LCD Display |
| LED Flashlight | Hight /Low RF Power Switchable |
| Voice companding | 50 CTCSS/ 104DCS coder & tone searching |
| dual standby | PC programmable |
| Wide/Narrow Band(25kHz/12.5kHz) | Transmitter time-out timer(TOT) |
| High/Low TX power selectable | Busy channel lock-out(BCLO) |
|
General: |
|
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-520MHZ (TX/RX) |
|
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Antenna : |
SMA -Female |
|
Earpiece / mic type : |
K Plug type |
|
Dimension(W x H x D) |
132 x 60 x 35 mm (not included antenna) |
|
Weight |
238g(including battery, antenna) |
|
Power adapter |
Input: AC100-240V, 50-60Hz; |
|
Transmitter: |
|
|
Output power |
8W/ 4W / 1W (Max 8W) |
| Maximum deviation | 5kHz(Wide) / 2.5kHz(Narrow) |
| purious Radiation | 7μW |
| Pre-emphasis characteristics | 6dB |
| Current | 1.6A(5W) |
| CTCSS/DCS deviation | 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mv |
| Intermediation distortion | 10% |
| Full set including: | |
| BAOFENG UV-82 Dual Band FM Transceiver (not included battery) | |
| 7.4V/2800mAh BL-8 Battery | |
| Antenna(136MHz-174MHz&400-520MHz) | |
| Power Adapter (EU/US/UK/AU plug) | |
| Belt Clip | |
| Hand Strap | |
| Battery Charger | |
| headset | |
| User Manual |
