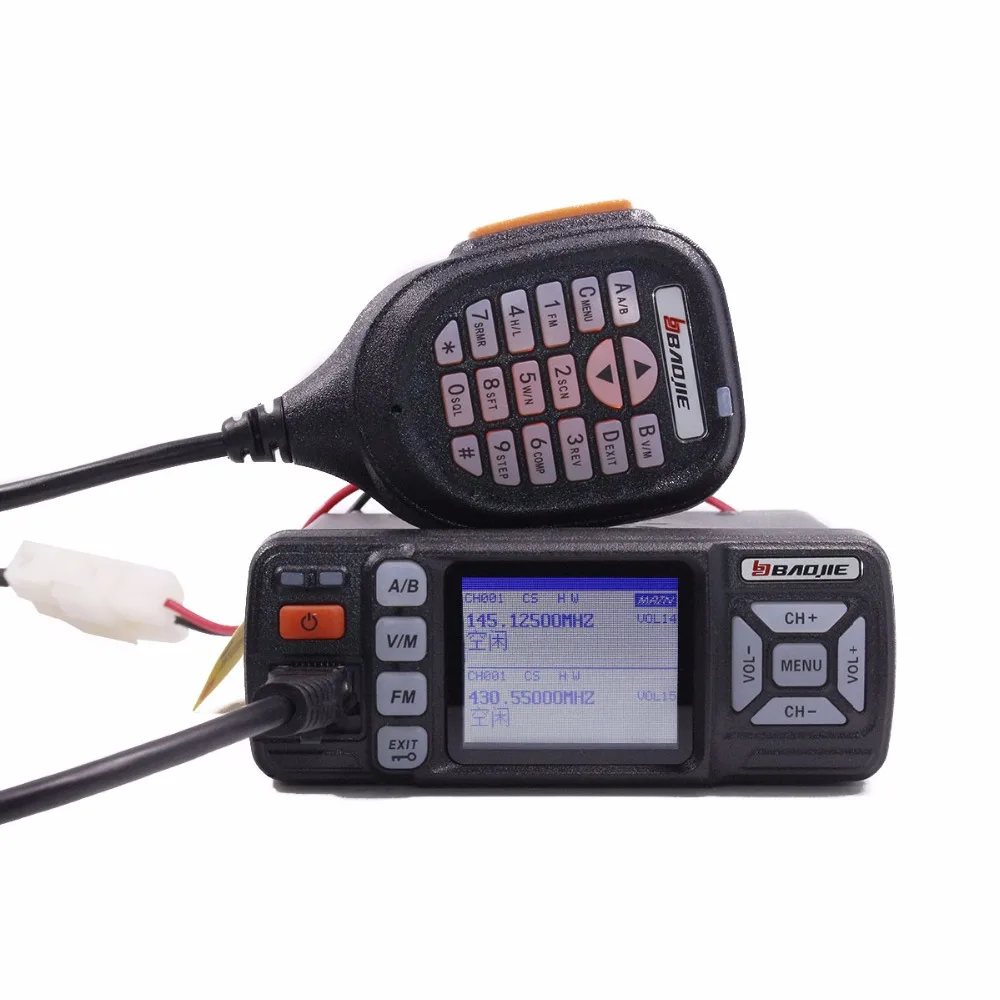

Baojie BJ-318 Car Radio 25W Dual Band VHF UHF Mobile Radio


& Free Shipping
Guaranteed Safe Checkout

Baojie BJ-318 Mini Vehicle Mount Car Radio Station 256CH 10km 25W Dual Band VHF/UHF Mobile Radio Transceiver Upgrade of BJ-218

All the following products are compatible with BJ-318





Add Programming Cable



Add Antenna Set 1



Add Antenna Set 2




Hot sot:

1) Upgrade Cool LCD Display, Fashionable and Convenient !

2) Mini Size Portable !

3) Unique Free Setttings of Running / Single / Dual Receive !

4) Internal Cooling Fan !

5) Of Course, Favorable Price !


Dual display, dual standby & Dual Track

Frequency adjusting

Working mode selecting

Scrambling encryption function

Voice companding function

Frequency/Channel scan function

Reverse frequency setting

Busy channel lock-out (BCL)

Time-out timer (TOT)

High/low power selectable

CTCSS/DCS encoding and decoding

Broadband (Wide)/Narrow band (Narrow) selectable

Frequency Step Selectable 2.5/5/6.25/10/12.5/25/50KHz

Level Threshold ldquoSquelchrdquo adjustable from 0 to 9

Tri-color background light selectable

PC software programmable

FM radio function

Operation for manual channel memory and delete

Automatic lock-out

DTMF signal setting

DTMF signal

PTT ID Setting

Remote control function

Remote monitoring

Remote stun

Remote killaking

Remote reliving

Alarm function

Group calling function

Team calling function

Selected calling function

Function key guide voice(BEEP)

SFT/Slip frequency direction

OFFSET/Slip frequency

1000Hz/1450Hz/1750Hz/2100Hz selecting



tutto il nostro articolo sono di marca Notizie





Gamma di frequenza

UHF: 400-470 MHz & VHF: 136-174 MHz


F3E (FM)

capacitagrave di canale


tensione di ingresso

DC13.8V (plusmn 15%), messa a terra negativi

potenza di uscita

H: 25 W, M: 10 W, L: 5 W

Spaziatura Tra I canali

12.5 KHz/25 KHz

Spaziatura di frequenza

2.5/5/6.25/10/12.5/15/25/50 KHz

Squelch way


Antenna impedenza

50 ohm

stabilitagrave di frequenza

plusmn 5ppm @-10 deg C ~ + 60 deg C

temperatura di funzionamento

-20 deg C ~ + 60 deg C (-4 deg F ~ + 140 deg F)

Max. deviazione di Frequenza

plusmn 5 KHz

rumore di radiazione

< =-60dB


< = 0.2Uv (12dB SINAD)

Max. uscita Audio

2 W @ 8 ohm distorsione 5%

corrente di funzionamento


0.3A (SQL)


5A (Max.)


105x30x106mm (non compreso il outparts Lxaxp)

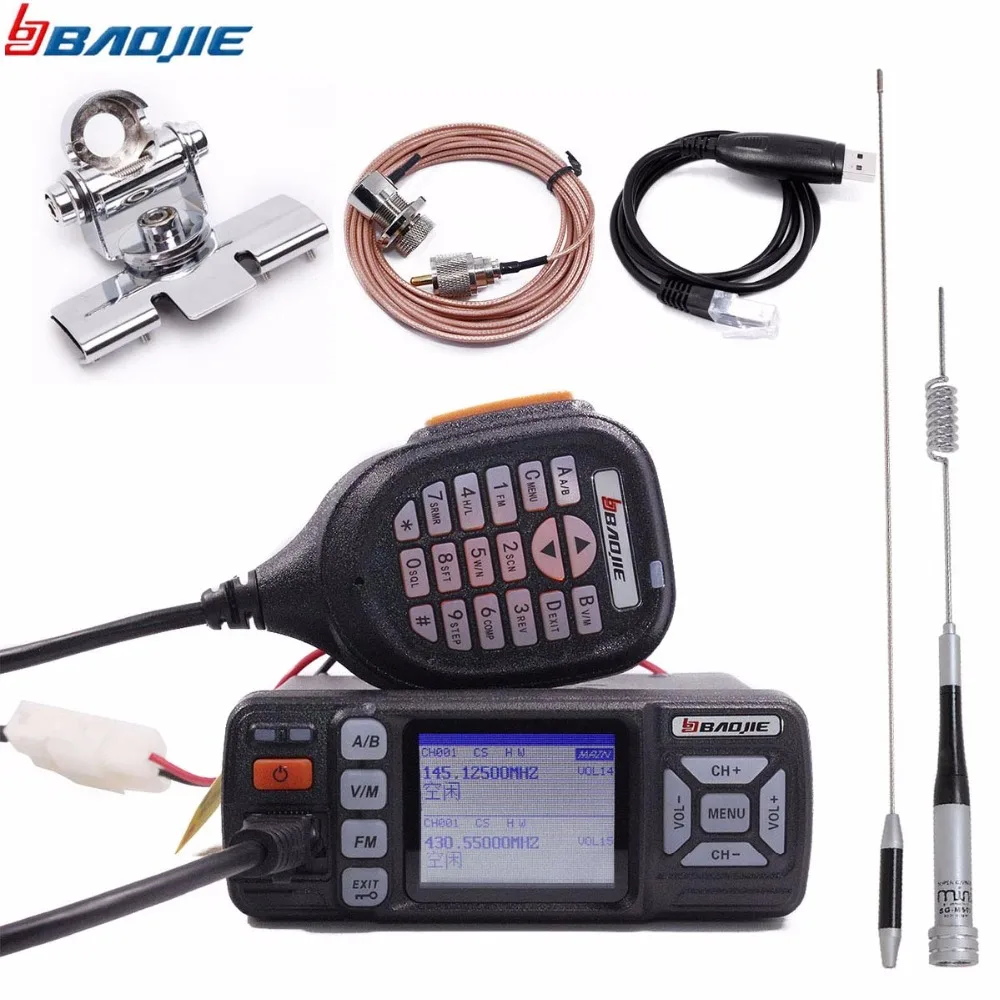

Factory Standard:

1 x BJ-318 ( 136-174/400-470MHz ) Mini Mobile Radio Transceiver

1 x Microphone

1 x Car Power Cable

1 x Mounting Bracket

1 x Screws

1 x User’s Manual



BJ-318, add usb cable, add antenna set 1, add antenna set 2
