KVE60C 0.5-60MHz HF Vector Impedance Antenna Analyzer with 3pcs RF Adapter for Amateur Radio

KVE60C 0.5-60MHz HF Vector Impedance Antenna Analyzer with 3pcs RF Adapters for Amateur HAM Radios

Gernal Description

This is a radio experiment device,non-commodity available.Sharing a part of the design,experiment costs.you can get the device involed in the commontest. device is a 50 ohm resistance test system composite impedance z,resistance R,reactance X, and standing wave SWR.

Specifications:

Display: Sharpe Transflective TFT, 1600 million color, QVGA. Mitsubish hardened scratch resistant acrylic protective lenses.

Frequency Range:0.5-60MHz

RF Output Power:1dBm (14MHz)

SPAN:0.15/0.3/0.6/1.2/2.4/6/12/24/48MHz

Frequency Step: 0.11/1/10/100/1000KHz

V.S.W.R Range:1.00-99.99

Z.R.X Range:0-999.9

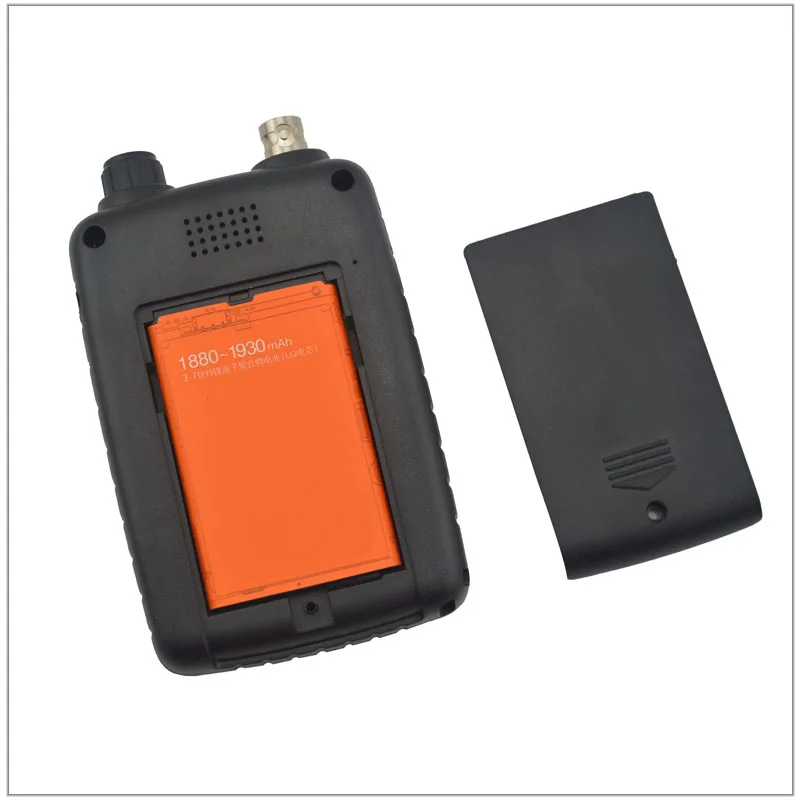

Power:3.7V Li-Polymer 1880mAh

Charge Power Supply: DC5V>500mA

Package Contents:

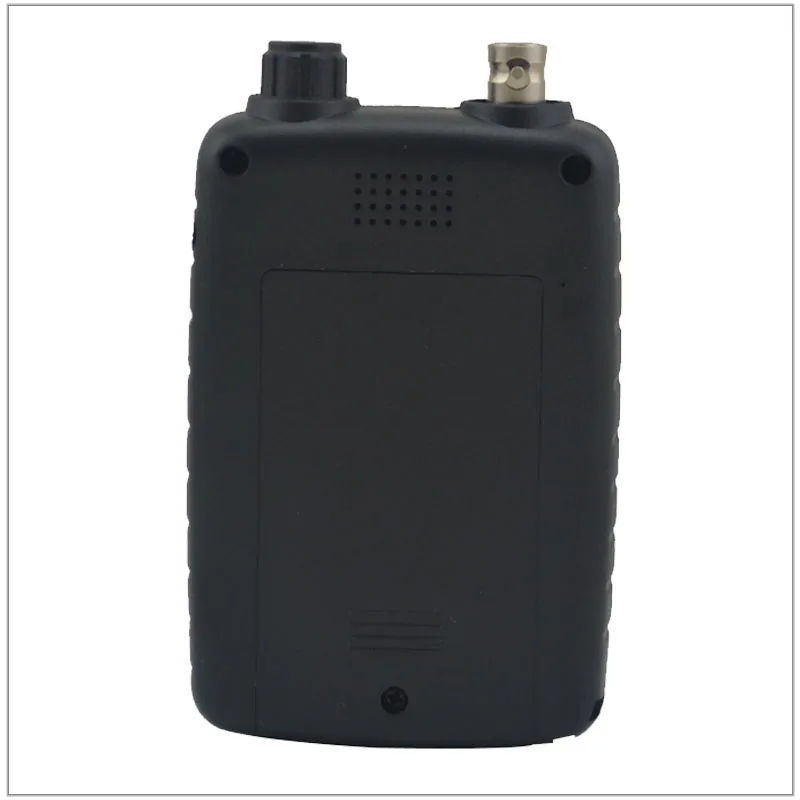

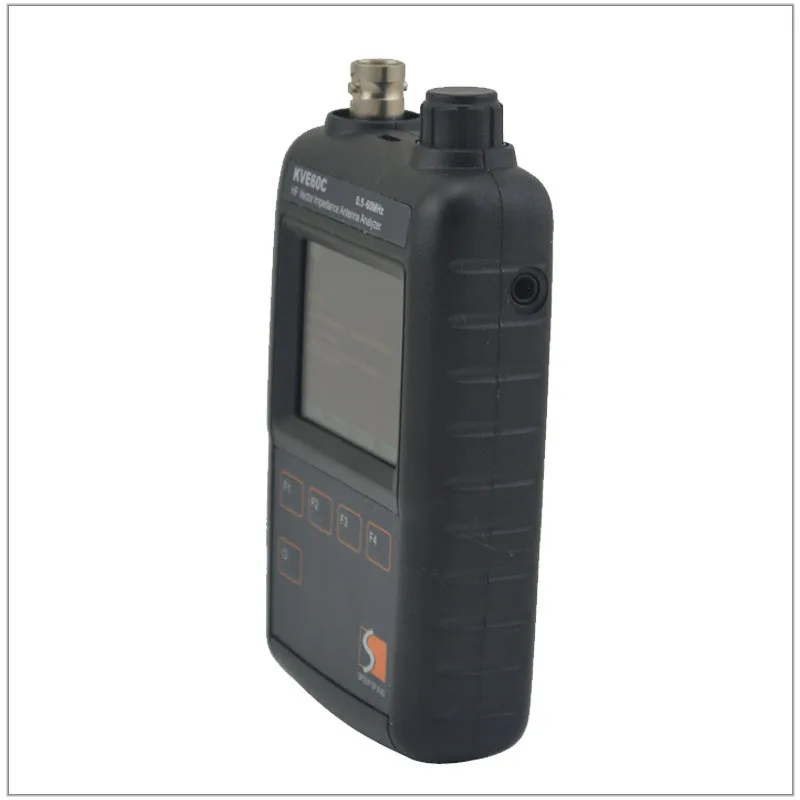

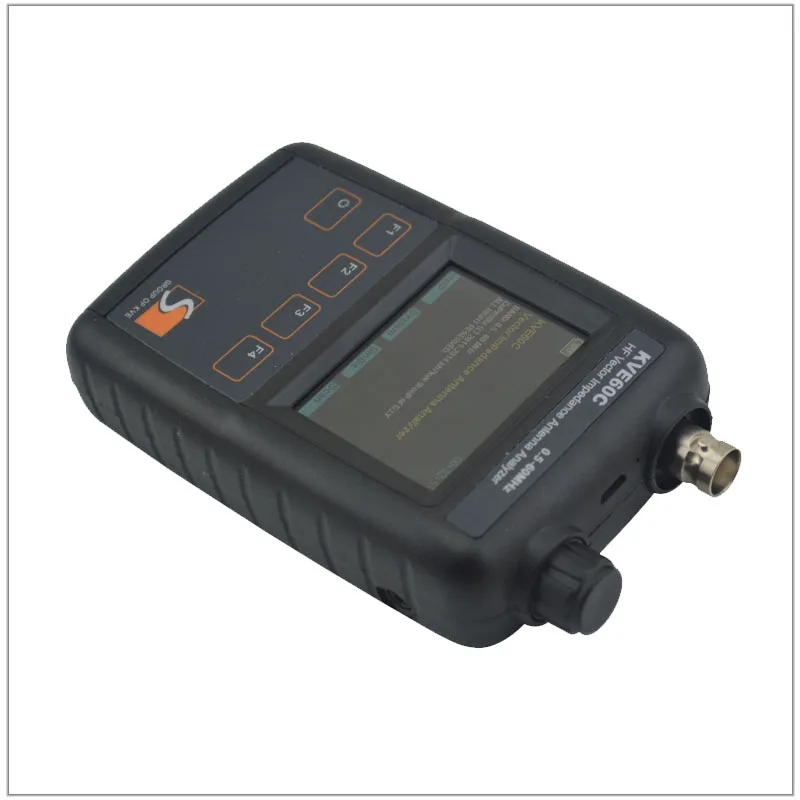

1× KVE60C 0.5-60MHz HF Vector Impedance Antenna Analyzer

3× RF Adapter

​
