QUANSHENG Radio TG-K2AT UV Dual Band Analog FM Walkie Talkie
Features:
- UHF & VHF dual band
- FM radio 65-108MHz
- 1.7 inch LCD display
- 2000mAh high capacity Li-ion battery pack
- Battery Save
- High/Low power selection
- Dual Channels, dual frequencies display
- VOX
- 128 storage channels
- DTMF
- Flashlight
- 1750 call Tone
- Channel scan
- Frequency step: 2.50/5.00/6.25/10.00/12.50/25.00KHz
- CTCSS/DCS
- TOT
- Emergency Alarm
- Reverse function
Specifications:
|
General |
|
|
Frequency Range |
Dual band 137-174MHz & 400-480MHZ (RX/TX) |
|
Storage channel |
128 |
|
Frequency Step |
2.5/6.25/10/12.5/20/25KHz |
|
Working Voltage |
DC 7.2V |
|
Stability |
±2.5ppm |
|
Operation temperature |
-20°C ~+50 °C |
|
Operation mode |
Simplex or semi-duplex |
|
Antenna Impedance |
50ohm |
|
Battery Capacity |
2000mAh |
|
Dimensions |
109*58*35.5mm (Antenna Not included) |
|
Transmitter |
|
|
Output Power |
5W |
|
Modulation Mode (Wide/Narrow Band) |
16KØ F3E/11KØ F3E |
|
Maximum Deviation (Wide/Narrow Band) |
≤5KHz/≤2.5KHz |
|
Spurious radiation |
≤7.5µW |
|
Adjacent Ch. power |
≤-65dB/≤-60dB |
|
Modulated noise (Wide/Narrow band) |
≥-45dB/≥-40dB |
|
CTCSS/DCS frequency deviation |
0.7±0.1KHz/0.4±0.1KHz |
|
Intermediation sensitivity |
8~12mV |
|
Current |
≤1.4A (high power) |
|
Receiver |
|
|
Sensitivity |
-122dB(12dB SINAD) |
|
Audio Power |
1W |
|
Audio Distortion |
<10% |
|
Inter-modulation(Wide/Narrow band) |
≥65dB/≥60dB |
|
Adjacent Ch. Selection |
≥65dB/≥60dB |
|
Blocking |
≥65dB |
|
Current |
≤380mA |
Note: Specifications will be revised without notice due to technical improvement. Thank you.
Package contains:
1× TG-K2AT (UV)dual band radio
1× 2000mAh Li-ion Battery Pack
1× Desktop Charger
1× SMA-Female Antenna
1× Belt Clip
1× 12V Car Charger
1× Hand Strap
1× User’s Manual

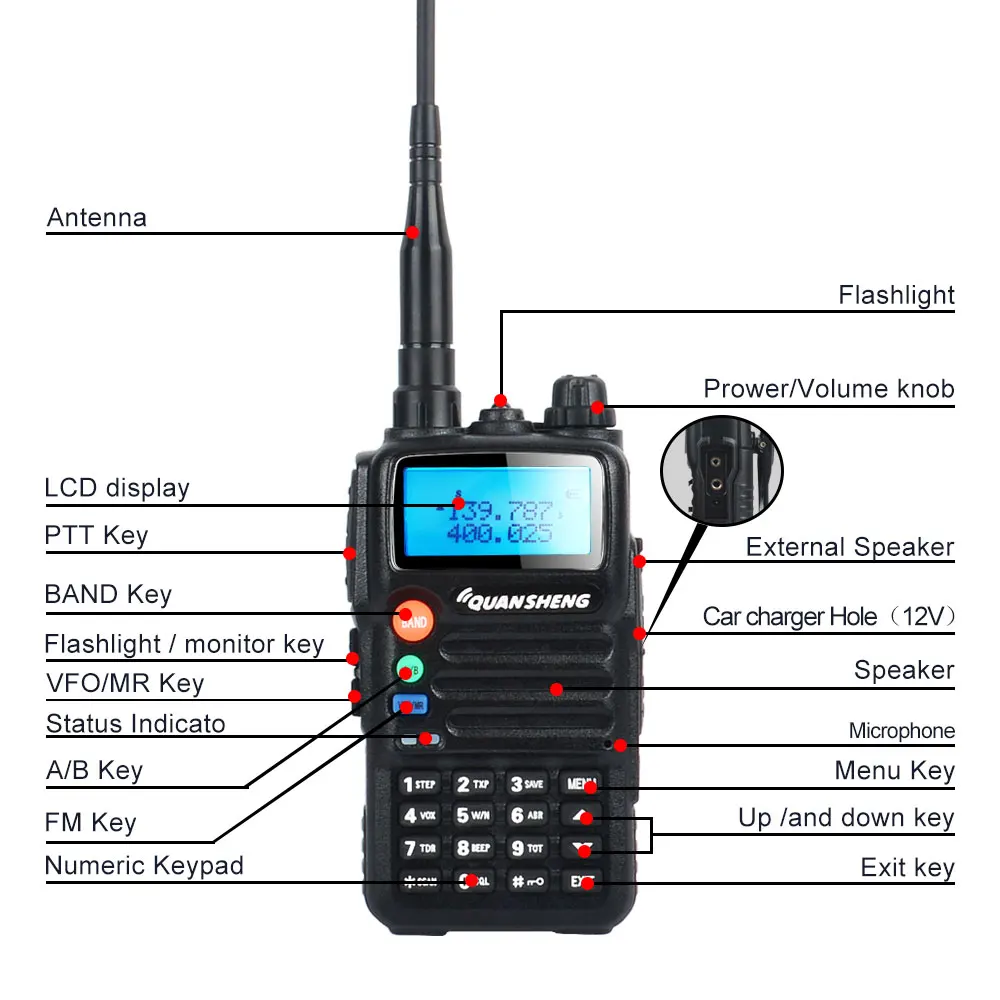

Photos:
