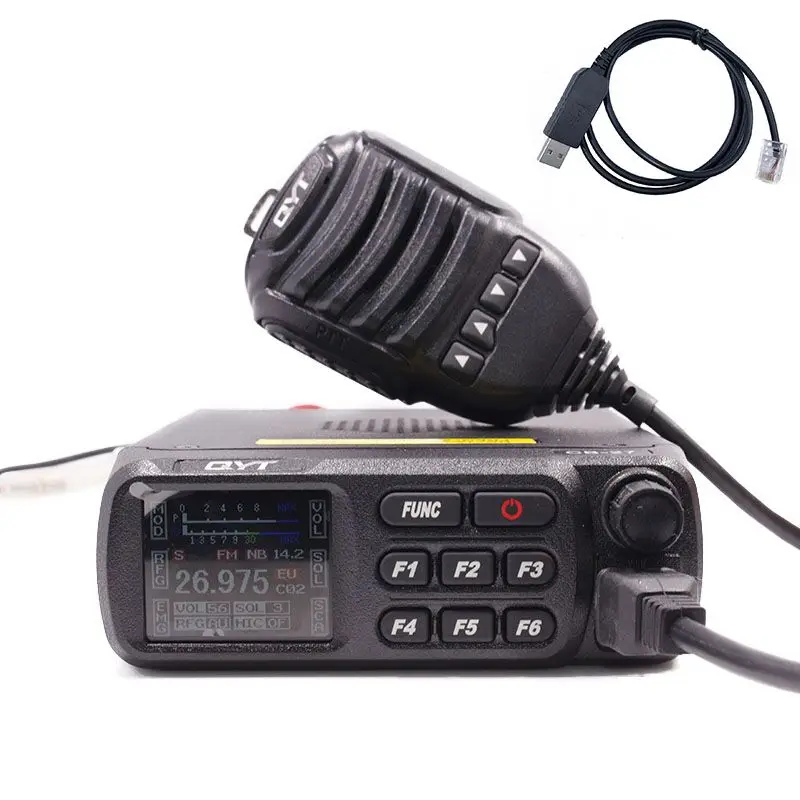

QYT CB-27 CB Radio 26.965-27.405MHz AM/FM 12/24V 4 Watts LCD Screen Shortware Citizen Band Multi-Norms CB Mobile Radio
CB Radio Antenna:
CB Radio USB Programming Cable
Main Features:
FTF LCD display
12/24V voltage
Full alloy body for heat radiation
Programmable keypad
CTCSS/DCS (Optional)
Wireless microphone control (optional)
Cell-phone APP control (optional)
AM/FM multi norms
Flexible menu and programming software
DTMF
SQ,ASQ
SQ,ASQ open/close value setting
RF Gain
Scan
Dual watch
Programmable RB
CH9/19
NB/ANL
HI-CUT
Voltage protection
9 memory channel
TOT
Backlight control
Automatic power on
Keypad lock
SPECIFICATIONS
|
GENERAL |
||
|
Modulation Mode |
AM/FM |
|
|
Frequency Range |
26.965-27.405MHz |
|
|
Frequency Tolerance |
plusmn5.0ppm |
|
|
Input Voltage |
12/24V |
|
|
Dimensions (mm) |
123(W) x 158(D) x 44(H) |
|
|
Weight |
Approx.660g |
|
|
Frequency Control |
PLL Synthesizer |
|
|
Operating Temperature Range |
-20degc ~ +55degc |
|
|
Current Drain |
Transmit |
2A Max |
|
Receiver |
Squelched 0.3A |
|
|
VOL Max |
0.8A |
|
|
Antenna Conector |
UHF,SO-239 |
|
|
TRANSMITTER |
||
|
Output Power |
4Watt FM/AM |
|
|
Transmission interference |
Inferior to 4nW(-54dBm) |
|
|
Frequency Response |
300-3000Hz |
|
|
Modulated signal distortion |
Inferior to 5% |
|
|
Output Impedance |
50 ohm |
|
|
RECEIVER |
||
|
Sensitivity |
Less than 1uV for 10dB(S+N)/N |
|
|
Image rejection |
70dB |
|
|
Adjacent channel rejection |
60dB |
|
|
IF Frequency |
1st 10.695MHz |
|
|
2nd 455KHz |
||
|
Automatic Gain Control (AGC) |
Less than 10dB change in audio |
|
|
Output for inputs from 10 to 50000uV |
||
|
Squelch |
Less than 1uV |
|
|
Audio Output Power |
3 watt into 8ohm |
|
|
Frequency Response |
300-3000Hz |
|
