Sale!

TYT MD-390 GPS Waterproof IP-67 VHF DMR Digital Walkie Talkie Ham Two Way Radio

$154.67

1 in stock

Description

Brand New TYT Upgrade Waterproof IP-67 VHF DMR Digital Ham Two Way Radio MD-390 Voice Encryption Free Earphone and Cable

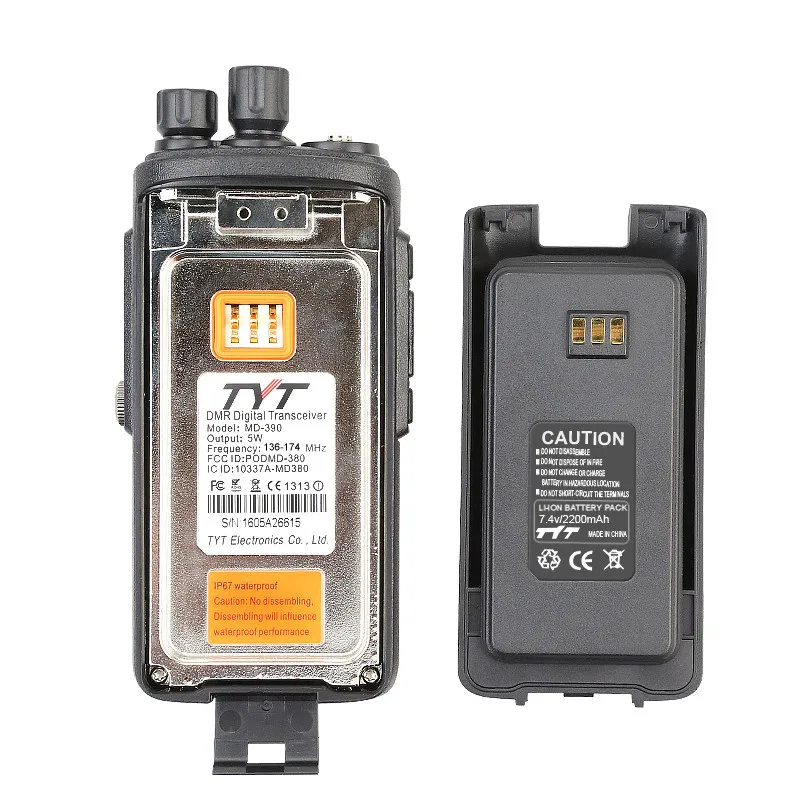

Large Capacity Battey with 2200mAh.
IP67 waterproof function (can stay for about 30 minutes 1m underwater 1000 channels).
Remote kill/stun/activate.
Voice prompt.
Power-on protection.
Color LCD display.
Text messages in digital mode.
Encryption function.
Built-in CTCSS/DCS.
Up to 1000 channels.
Priority scan.
Compatible with Mototrbo Tier I & II.
DTMF decoding and encoding.
Specifications:
Frequency Range: 136-174MHz (VHF).GPS
Channel: 1000 Channels.
Channel Spacing: 12.5KHz.
Operating Voltage: 7.4V.
Battery Type: Li-ion.
Antenna Impedence: 50 Ohm.
Audio Output Power: =< 1000mW 16 Ohm.
Transmitter:
Output Power: =< 5W (Hi)/=< 1W (Low).
Frequency Stability: ±1.0PPM.
Adjacent Channel Power: =< -60dB.
Free Time Slot Power: TDMA: =< 57dBm.
Hum and Noise: -40dB 12.5KHz.
Spurious Radiation: Antenna: 9KHz-1GHz =< -36dBm 1GHz-12.75GHz =< -30dBm.
FM Modulation Mode: 12.5KHz: 11K0F3E.
4FSK Digital Mode: 12.5KHz (data ony): 7K60FXD 12.5KHz (data + voice): 7K60FXE.
Modulation Maximum Deviation: 2.5JHz 12.5KHZ.
Nonactive Slot Power: -57dBm.
Receiver:
Analog Sensibility: 0.35uV/-116dBm(20dB SINDA).
0.22uv/ -120dBm (Type).
Digital Sensibility: 0.3uV/-117.4dBm (BER 5%).
0.22uV/-110dBm (BER 1%).
Co-channel Rejection: >= -12dB.
Rated Audio Power: 1W.
Rated Audio Distoration: 3% (Type).
800x800-MD-390-7-1
800x800-MD-390-4-1
800x800-MD-390-5-1
VHF
800x800-MD-390-10-1
800x800-MD-390-12-1
