TYT TH-9800 Mobile Radio quad band 29MHz 50MHz 144MHz 430MHz Vehicle Transceiver with antenna

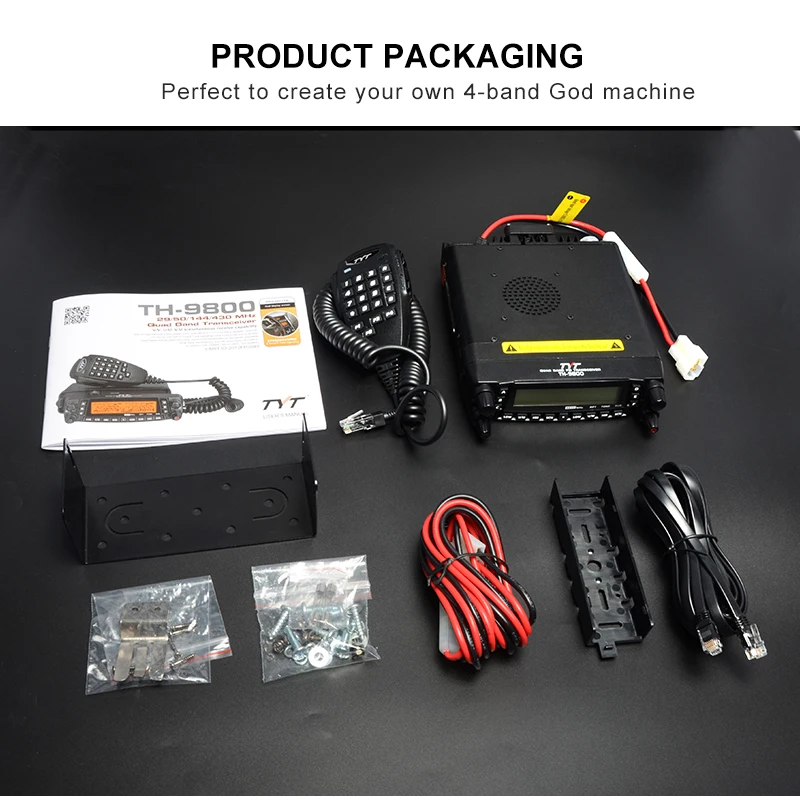

Package of unit:
Radio unit ×1
Keypad DTMF microphone ×1
Radio body mounting bracket ×1X
DC power cable with fuse holder ×1
Front controller mounting bracket ×1
Screw packs ×1
Protection fuses ×1
User manual ×1
13CM 5M Antenna Mount x 1 (optional)
HH9000 Antenna x 1 (optional)
Cover 29/50/144/430 MHz four transmitting bands
Wide band AM receiving and FM receiving for 26-33MHz, 47-54MHz, 108-180MHz, 320-512MHz, 750-950Mhz(except cell phone)
Independent controls for each left and right band
V+V, U+U, V+U simultaneous receive capability
Built-in V+U cross-band repeater and full duplex capability
800 memory channels and independent setting per channel
50W of high power output for VHF band and 40W for UHF band
Standard 50 groups of CTCSS tone & DCS code capability
DTMF/2-Tone/5-Tone for selective calling
Voice compander and encryption scramble
Automatic Repeater Shift(ARS)
Detachable front controller and remote mounting capability
Ultra-size LCD dual display screen
User-programmable microphone keys
|
Frequency Range(Default)
Note: 66-88MHz&220-260MHz are optional bands and could be available for some special requirement. |
Left Band RX:26.000-33.000MHz, 47.000-54.000MHz, 108.000-180.000MHz, 320.000-512.000MHz TX:26.000-33.000MHz, 47.000-54.000MHz, 134.000-174.000MHz, 400.000-480.000MHz Right Band RX:134.000-180.000MHz, 400.000-512.000MHz TX:134.000-174.000NHz, 400.000-480.000MHz |
|
Channel Steps |
2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz |
|
Modes of Emission |
FM |
|
Antenna Impedance |
50 Ohms,unbalanced (Antenna Duplexer built-in) |
|
Frequency Stability |
±5ppm |
|
Operating Temperature Range |
-4οF to +140οF |
|
Supply Voltage |
13.8V DC(±5%) |
|
Current Consumption |
RX:0.5A(Squelched) TX:8.5A |
|
Case Size(W×H×D) |
140×41.5×168mm |
|
Weight |
1.2kg |
