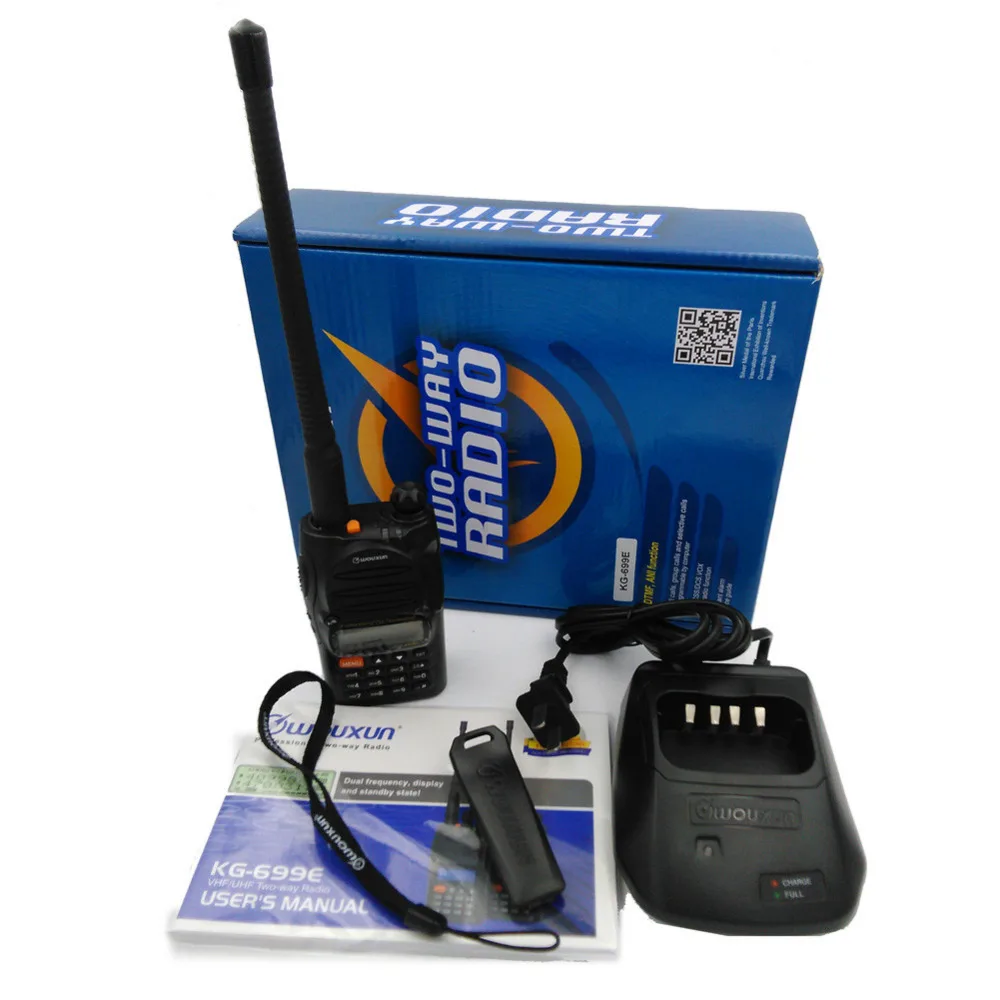

Wouxun KG-699E UHF 400-470MHz Handheld Radio Portable Walkie Talkie

Wouxun KG-699E-U UHF 400-470Mhz Two-way Radio

Handheld Two Way Radio

KG699E (Single Knob ,Version : advanced ) have passed CE approval.

Main Features
. UHF Dual frequencies
. Dual display and standby modes
. 128 memory channels
. 1 group scrambler
. Channel name edit available
. Output power UHF 5W/1W
. High/Low power can changeable by top key
. VOX (Level adjustable)
. DTMF encoding and DTMF decoding
. 105 groups D.C.S/50 groups CTCSS
. DCS/CTCSS of RX and TX can be set respectively
. Reverse frequency function
. Busy channel lockout
. Distant alarm
. ANI (Caller ID)
. Multi scan mode (TO/CO/SE)
. Inspection, monitor, stun, kill and emergency alarm
. All calls, group calls and selective calls
. Calling ring and ring overtime auto answer
. Multi silent mode (QT/QTADT/QTXDT)
. Channel steps (5K/6.25K/10K/12.5K/25K)
. Wide/Narrow bandwidth selection (25KHz/12.5KHz)

Features
. 5/2 tone and 1750Hz burst tone
. Priority scan
Remark: If the radio with above optional features, it will available 200
memory channels and 1 group scrambler.

Super Features
. Digital FM radio with frequency display
. Three color LCD backlight display
. Frequency/Channel/Frequency+Channel display mode
. Voice guide (Chinese / English)
. Side key programmable
. Menu/Channel reset
. Keyboard lock (Auto/Manual)
. Wireclone function
. Programmable by computer
. Input frequency by using keypad
. PC software disable frequency input
. Come with 1300mAh Li-ion battery and intelligent charger

Technical indicators:
Frequency Range UHF: 400-470mHZ
Channel Capacity 128(200)
Channel Spacing 25/12.5KHz
Maximum Deviation 5KHz to 25KHz 2.5KHz to 12.5KHz
Frequency Stability 2.0ppm
Operating Voltage 7.4V
Operating Temperature -30 Celsius ~ +60 Celsius
Battery 1300mAh(Li-ion)
Standby Current 50mA
Antenna Impedance 50
Dimension(without antenna & battery(L×W×H) 105×62×39(mm)
Weight(with antenna & battery) 260g

Transmitter
RF Power Output UHF:5W/1W
Modulation 16K(Ef) F3E/11K(Ef) F3E
Spurious and Harmonious -36dBm <1GHz -30dBm> 1GHz
FM Noise 40dB
Adjacent Channel Power 70dB/60dB
Audio Distortion 5%

Receiver
Sensitivity(12dB SINAD) 0.25V
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 65dB/70dB
Audio Power Output 500mW
Audio Distortion 3% (0.5W)
