Wouxun KG-UV2Q 8W Powerfrul 7-Band Air Band Cross Band Repeater Classic Circuit Walkie Talkie
8W Powerful Dual Bands Transmission , Seven Bands Reception , Two Way Radio KG-UV2Q
Features:

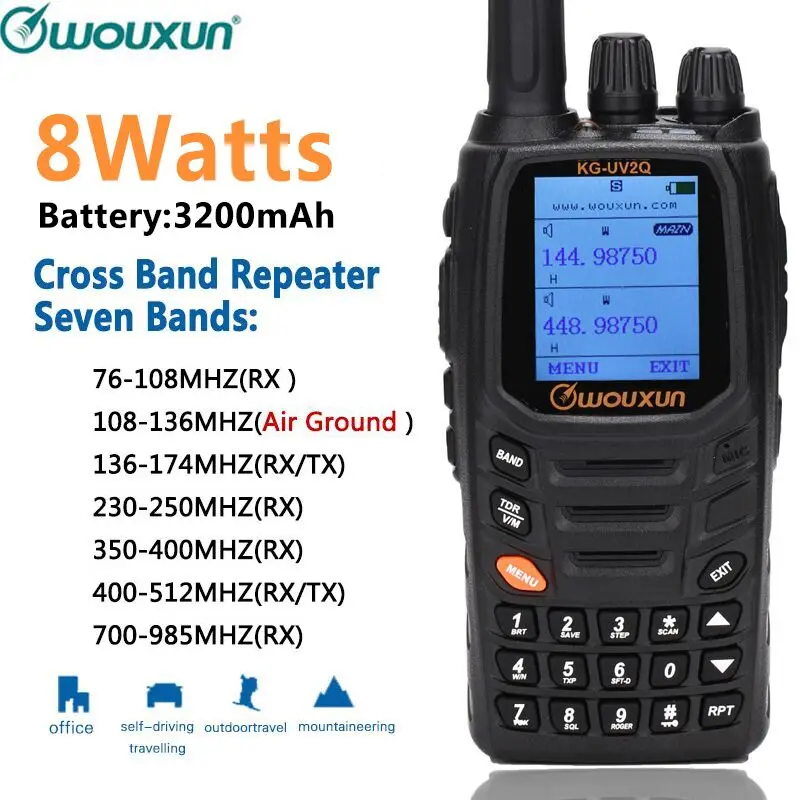

-Frequency Range
TX:136-174MHz(FM) 400-512MHz(FM)
RX:108-136MHz (AM Band Receiving)
136-180MHz(FM)
230-250MHz(FM)
350-400MHz(FM)
400-512MHz(FM)
700-985MHz(FM)
-Twin Band Simultaneous Receiving (U-U,U-V,V-U,V-V)
-Separate Bands Duplex (U-V,V-U)
-DTMF Encoding/Decoding
-All Calls,Group Calls and Selective Calls
-Stun,Kill,Monitor and Inspection
-CTCSS/DCS Scan
-Programmable Non-Standard CTCSS/DCS
-Multi Scan Modes: Programmable Scanned Frequency Range (only available in Frequency Mode),Channel Groups Scan (only available in Channel Mode)
-Multi Functions Programmable for Side Keys, Programmable Transmission Function on Sub-Frequency(Side Key Function Programmable)
-English Voice Guide
-Priority Scan, Priority Channel Setting
-Twin Band Simultaneous Scan
-Multi Power Save Modes
-Auto Power-OFF Timer (APO)
-Three Output Power Levels:
High / Med / Low Power Settings (8W, 4W, 1W)
-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)
-Multi Keypad Lock Modes
-PTT ID
-Wide/Narrow Bandwidth Selection
-Backlight Brightness Selection
Specifications:
|
Intergration |
||
|
Frequency Range |
TX:136-174MHz(FM) 400-512MHz(FM) RX:108-136MHz (AM Band Receiving) 136-180MHz(FM) 230-250MHz(FM) 350-400MHz(FM) 400-512MHz(FM) 700-985MHz(FM)
|
|
|
Step |
2.5/5/6.25/10/12.5/25/30/50/100KHz |
|
|
Channel Number |
999 |
|
|
Work Mode |
F2D/F3E |
|
|
Operating Temperature |
-20°c to 60°c |
|
|
Antenna Resistance |
50Ω |
|
|
Voltage |
7.4VDC |
|
|
Weight |
490g |
|
|
Size |
124.5×61.49×33.88(mm) |
|
|
Transmitter |
Wide Bandwidth |
Narrow Bandwidth |
|
Type of Modulation |
16K F3E |
11K F3E |
|
Adjacent Channel Power |
≥70dB |
≥60dB |
|
Spurious |
≥60db |
≥60dB |
|
Audio Response |
+1~3dB(0.3~3KHz) |
+1~3dB(0.3~2.55KHz) |
|
Max Frequency Deviation |
±5KHz |
±2.5KHz |
|
Frequency Stability |
±2.5ppm |
|
|
Audio Distortion |
≤5% |
|
|
Ouput Power |
H:8W,M:4W,L:1W |
|
|
Receiving |
Wide Bandwidth |
Narrow Bandwidth |
|
Adjacent Channel Selectivity |
≤70dB |
≤60dB |
|
Inter Modulation |
≤65dB |
≤60dB |
|
Spurious Response |
≤70dB |
≤70dB |
|
Audio Response |
+1~3dB(0.3~3KHz) |
+1~3dB(0.3~2.55KHz) |
|
Signal to Noise Ratio |
≥45dB |
≥40dB |
|
Audio Distortion |
≤5% |
|
|
Audio Power |
Transceiver≤500mW |
|
|
Sensitivity |
108-136MHz (AM)-106dBM SINAD 13db 136-180MHz(AM)-119dBM SINAD 13db 230-250MHz(AM)-116dBM SINAD 13db 350-400MHz(AM)-119dBM SINAD 12db 400-512MHz(AM)-119dBM SINAD 13db 700-985MHz(AM)-96dBM SINAD 13db
|
|

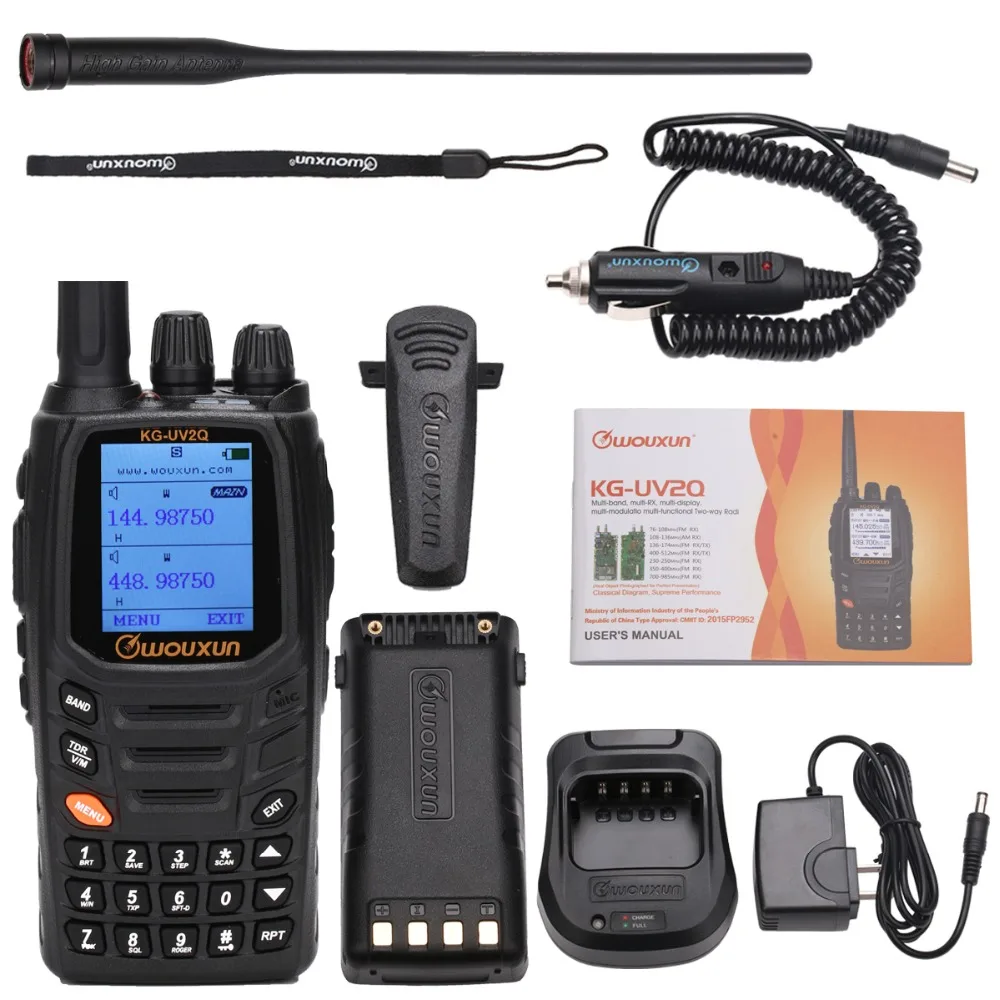

Package Contents:
1× KG-UV2Q Radio Body
1× 3200mAh Li-ion Battery
1× Intelligent Charger
1× Belt Clip
1× SMA-Male Antenna
1× Handstrap
1× User’s Manual
1× Usb Program Cable
1× Car Charger
1× Speaker Mic
1× AR-775 Antenna
