Wouxun KG-UV8D Plus Cross Band Repeater VHF UHF Dual Band Voice Encryption Walkie Talkie
Dual Bands , Voice Encryption , Two Way Radio KG-UV8D(Plus)
1.Duplex Work Mode and Dual Receiving
It can TX on one area while RX on the other area simultaneously , other, RX on the same or
different bands of A&B areas simultaneously
2.Cross Band Repeater
Frequency offset and direction programmable in repeater Mode UHF/VHF or VHF/UHF cross-band repeater
3.Voice Encryption and Non-Standard CTCSS/DCS
CTCSS or DCS create a secret channel between radios , non-standard ctcss or dcs is stronger
version , voice encryption function use password encrypt voice data
4.Some Improve Functions
Voice compander , backlight intensity can be adjusted , FM radio can be stored and retrieved 20 sets of frequency , power-on message editable
Function
1. Duplex Repeater (VHF to UHF or UHF to VHF)
2. Duplex Work Mode &TX on on area while RX on the other simultaneously)
3. Dual Receiving(RX on the same or different bands of A&B simultaneously)
4. Large Colorful Screen
5. Frequency Range (suitable for different countries or areas)
136-174/400-470 MHz (RX/TX) 144-146/430-440 MHz (RX/TX)
136-174/400-480 MHz (RX/TX) (RX) FM: 76 MHz-108 MHz (Space:100K)
136-174/420-520 MHz (RX/TX)
6. Dual Display
Dual Band Display on Large Screen, Two independent Operation System
7. Frequency Offset and Direction Programmable in Repeater Mode
UHF/VHF or VHF/UHF Cross Band Repeater
8. 999 Memory Channels
9. Strong and Stable Output Power (VHF: 5W / UHF: 4W)
10. QT/DQT Encoding/Decoding, QT/DQT Scan
11. VOX
12. Multi Definition for Sidekeys
13. Incoming Message Display
Caller ID display
14. DTMF Encoding and Decoding
15. All Calls, Group Calls, and Selective Calls
16. SOS Function
17. Priority Scan Function
18. Remote Alarm
19. Wide/Narrow Bandwidth Selection
20. Voice Guide: Chinese / English
21. Built to IP55 waterproof rating
22. Bright Flashlight Illumination
23. Single Tone Pulse frequency:
2100Hz / 1750 Hz / 1000 Hz / 1450 Hz
24. Reverse Frequency
25. Stopwatch
|
Specification |
||
|
Frequency Range |
134-174 / 400-520MHz (RX/TX) |
|
|
FM: 76-108MHz (RX) |
||
|
Step |
2.5KHz, 5 kHZ, 6.25 kHZ , 10 kHZ , 12.5 kHZ , 25 kHZ, 50 kHZ, 100kHZ |
|
|
Channel Number |
999 Channels |
|
|
Work Mode |
F2D/F3E |
|
|
Operating Voltage |
7.4VDC |
|
|
Operating Temperature |
-20 or +40 |
|
|
Antenna Impedance |
50 |
|
|
Size |
124.5×61.49×33.88(mm) |
|
|
Weight |
490g |
|
|
Receiver |
Wide Bandwidth |
Narrow Bandwith |
|
Adjacent Channel Selectivity |
70db |
60db |
|
Inter Modulation |
65db |
60db |
|
Spurious Response |
70db |
70db |
|
Audio Response |
+1~3db (0.3~3KHz) |
+1~3db (0.3~2.55KHz) |
|
Audio Distortion |
5% |
|
|
Audio Power |
Transceiver500mW |
|
|
Sensitivity |
UHF/VHF:0.25V(12dB SINAD) |
|
|
Transmitter |
Wide Bandwidth |
Narrow Bandwith |
|
Type of Modulation |
16K F3E |
11K F3E |
|
Adjacent Channel Power |
70dB |
60dB |
|
Spurious |
60dB |
70dB |
|
Audio Response |
+1~3dB 0.3~3KHz |
+1~3dB 0.3~2.55KHz |
|
Max Frequency Deviation |
5KHz |
2.5KHz |
|
Frequency Stability |
2.5ppm |
|
|
Audio Distortion |
5% |
|
|
Output Power |
5W/1W(VHF) |
|
|
Residual AM |
4W/1W(UHF) |
|

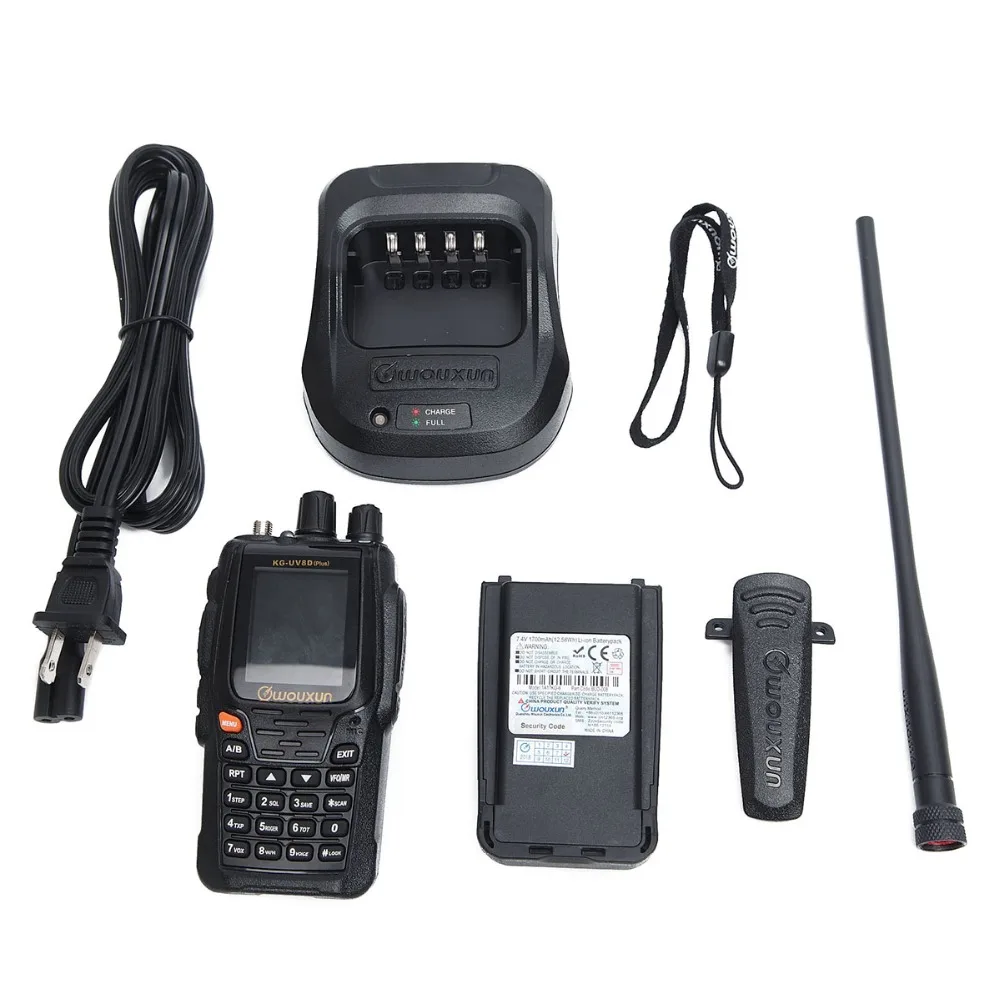

Package
1 x Wouxun KG-UV8D Plus Two Way Radio V1.03 New Firmware 2.5K Step

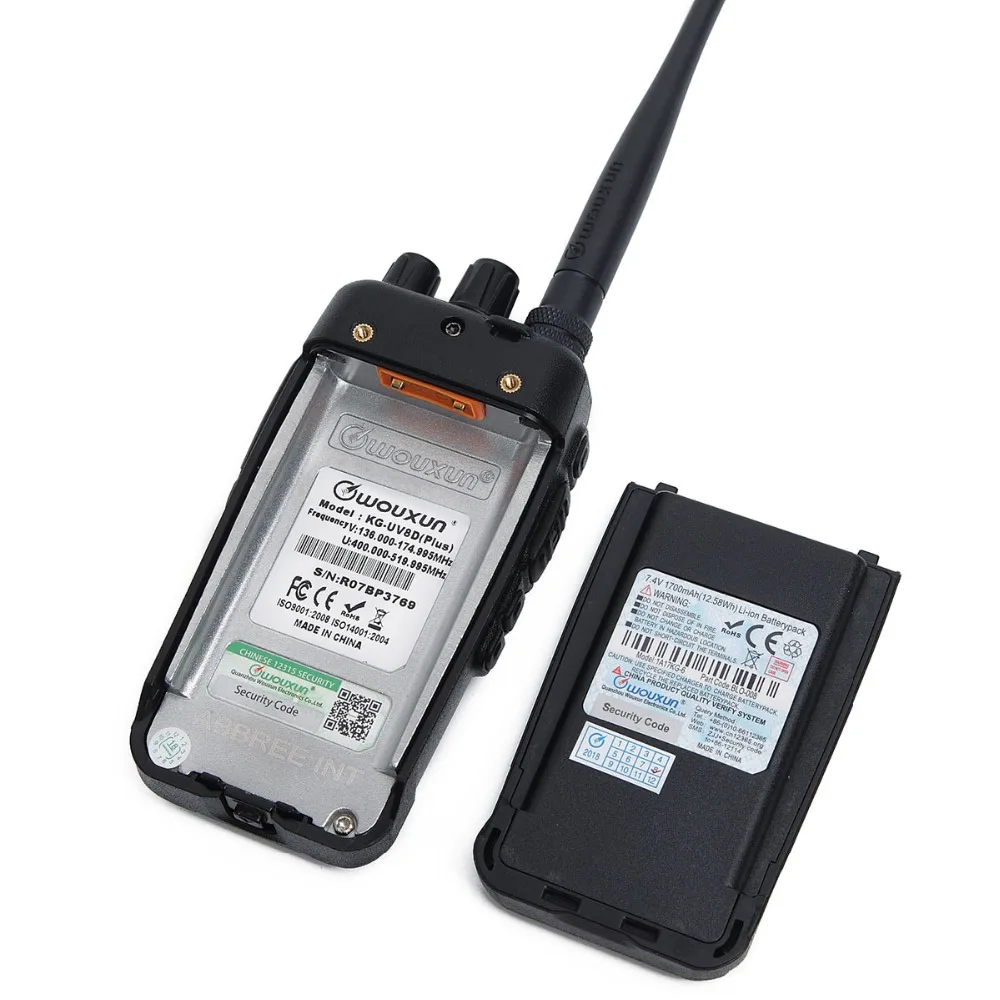

1 x Li-Ion Battery Pack
1 x Removable Antenna(connector type: SMA Female (Standard) )
1 x Belt Clip
1 x Wrist Strap
1 x Charger Tray
1 x AC Cable
1 x User Manual
1 x Adapter
1 x Headset
