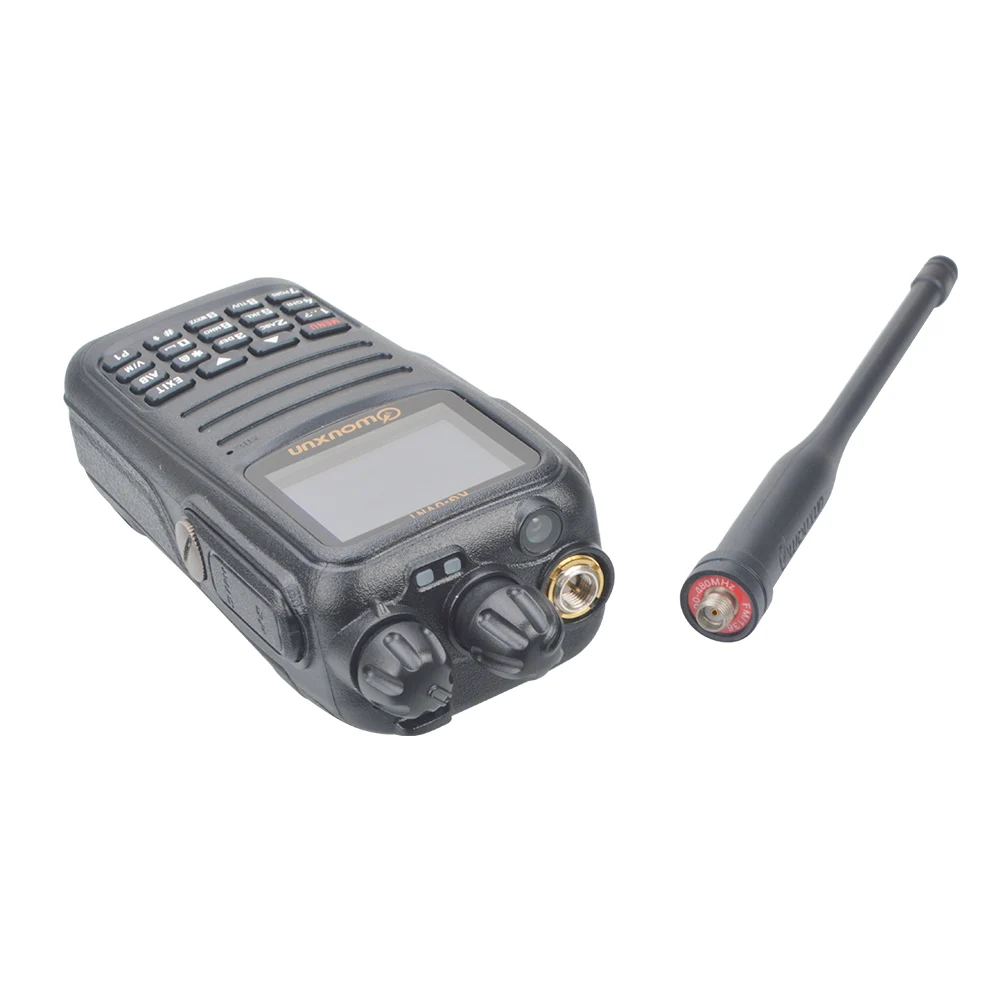

WouXun KG-UVN1 VHF UHF Dual Band DMR Walkie talkie Digital Analogue Portable FM Two Way Radio


& Free Shipping
Guaranteed Safe Checkout

WOUXUN DMR Walkie Talkie UHF VHF Dual Band dmr Digital recording and Analogue Two Way Radio KG-UVN1 with flashlight 2600mah High capacity battery pack


-Frequency Band:136-174MHz & 400-480MHz, FM (RX only):65.0-108.0MHz

-3072 Channel

-1024 Contacts

-255 Receiving Group

-250 Areas

-16 Scan List

-Radio ID

-Radio TX Contacts

-Radio Color Code

-Support Frequency Mode

-Dual Band Dual Display

-Program Key

-Digital Voice encryption

-Emergency Alarm

-VOX Function

-Priority Channel

-Scan TX designated Channel

-Low Battery Power OFF

-One Touch Relay/Talkaround

-Radio Program password

-Menu Encryption

-Menu Hide

-Power Save Mode

-Group Scan

-Tail Elimination

-High (UHF:4W,VHF:5W)/ Low Power (1W)

-Text Message

-Lone Worker



-Call Alert


-CTCSS encoding/decoding (support non-standard)

-Recording (support digital channel recording up to 8 hours)

-Play Recoding File

-Custom Radio Interface

-DTMF Encoding/Decoding

-Transmit time-out Alert

-FM Radio

-Firmware Upgrade



Frequency Range VHF: 136-174 & UHF:400-480MHz, FM(RX only):65-108MHz
Storage Channel 3072
Operating Temperature -20°c ~ +40°c
Antenna Resistance 50 ohm
Voltage 7.4V DC
Weight 300g
Size 130*64*40.5mm


Output Power UHF: 4W (H),1W(L), VHF:5W(H),1W(L)
FM Modulation 12.5KHz: 11K φ F3E(W/N),25KHz: 16Kφ F3E
4FSK Digital Modulation 12.5KHz (data only):7K60FXD, 12.5KHz(data+voice):7K60FXE
Adjacent Channel Power ≤-60dB
Frequency Stability ±1ppm
Audio Distortion ≤5%
Audio Response +1~-3dB
Vocoder Type AMBE+2TM
Digital Protocol ETSI-TS102 361-1,-2-3
Bit Error Ratio ≤5%
Modulation Limit ±2.5KHz:@12.5KHz


Analog Receive Sensitivity 0.25μV@12dB SINAD
Digital Receive Sensitivity 0.25μV(BER:5%)
Adjacent Channel Selectivity ≤60dB@12.5KHz
Audio Response +1~-3dB
Audio Distortion ≤5%
Audio Power 1W
Intermodulation ≥65dB

Package Contents:

1×KG-UVN1 Dual Band DMR Radio

1× 7.4V 2600mah Li-ion Battery Pack

1× SMA-Female High Gain Antenna

1× Battery belt clip

1×Desktop Charger

1×AC Adapter


1× ENG Manual



Plug Standard

American, Australia Standard, BRITISH, Euro
