Xiegu X5105 All Bands Covering SSB CW AM FM RTTY PSK 0.5-30MHz 50-54MHz 3800mAh HF Transceiver


994 in stock

SKU: 4001267265792 Categories: , Tags: ,


Xiegu X5105 OUTDOOR VERSION 0.5-30MHz 50-54MHz 5W 3800mAh HF TRANSCEIVER with IF Output All Bands Covering SSB CW AM FM RTTY PSK

X5105 is a complete “grab and go” station in a ruggedly-stylish compact enclosure.

Go ahead, pick it up! Fits comfortably in your hand, yet it delivers all the powerhouse features normally reserved for a full-sized HF transceiver.

Going on a trip? Leave the accessory bag at home — everything you need is already built in. Just toss up an antenna and you’re on the air!

Here are some of the X5105’s advanced features:

• Large back-lit multi-function LCD display screen

• Transmit on all bands, 160 through 6 meters including 5 MHz

• Receive with gap-free coverage from 500 kHz to 54 MHz

• Operate on all modes (USB, LSB, CW, AM, FM, and Digital)

• Selectable IF bandwidth (500-Hz CW, 2.4-kHz SSB, 6-kHz AM)

• Built-in DSP, noise blanker, and notch filter to suppress interference

• Robust 600-mW AF-output with high-pass and low-pass audio EQ

• Deluxe multi-function keypad-microphone included

• Low-profile controls, heat sink, and desktop stand all built in

• Powerful 3800-mAh battery for extended “off-the-grid” operation

• More antenna choices using the built-in auto-tuner (ATU)

• Scan-feature displays band activity and plots antenna SWR

• Built-in Data Modem with CAR and AFC tracking, onscreen display

• Built-in auto-keyer with three memory channels plus CW trainer

• Adjustable SSB with speech-processing compressor

• Regular firmware updates are free, on line, any time

• Compact: 6-5/8Wx3-5/8Hx1-7/8D”, weighs 2.1 pounds with battery X5105 comes with features other manufacturers miss, like back-lit lowprofile control switches      conveniently spaced for adult-sized fingers, and a highly-visible 3.6-inch back-lit LCD that

displays all aspects of it’s operation.

Even the VFO is different, with a unique counter-sunk tuning knob and an unusually wide range of tuning rates (you even get velvet-smooth 1-Hz stepping to lock in data signals).

DX splits are easy to set up, and the wide-range RIT has a precision digital readout for surveying adjacent channels.

Transmit power is adjustable from 0.5 to 5.0 Watts in calibrated half-Watt increments, perfect for operating QRP, running miles-per-watt tests, or setting the correct drive level for an external amplifier.

You even get a built-in data modem with both CAR (carrier) and AFC (frequency) tracking — plus an onscreen spectrum display. And, when on the road, you can leave your antenna analyzer home because the X5105 plots SWR graphically. Add the wide-range impedance-matching capability of the built-in ATU, and the X5105 can put you on the map from virtually any location.

When receive conditions get rough,the X5105 comes with a powerful toolbox for cutting interference and pulling stations in. There’s a sensitive pre-amp to boost weak signals, a front-end attenuator to reduce overload, noise blanking (NB) for impulse noise, digital noise reduction (DNR) for atmospheric noise, variable notch filtering (NF) for pesky heterodynes, adjustable AGCRate (AGC), built-in CW filter, plus variable high-pass and low-pass audio-EQ filtering. And lots of spare audio-output power for driving an external speaker.

In transmit, CW contesting is a breeze! Get variable-speed automatic keying, plus three programmable message channels. For SSB contesting, theadjustable speech processor scores extra points. Deluxe electret keypad microphone places the radio’s advanced features at your fingertips. A mic is also built-into for walkie-talkie operation.

Power the X5105 from any regulated 9-15 volt 3-amp DC source or go “off grid” for up to 8 hours using the powerful built-in 3800-mAh Lithium-ion battery pack. Charging is simple because the radio’s power-management circuitry continuously monitors battery condition and fully controls the recharge cycle.

Factory tested, complies with FCC rules, and has one year warranty.


➤ ALL BANDS COVERING: With a built-in power output of 5W, Xiegu X5105 is a highly portable transceiver working at HF+6m band, covering all modes of HF, 50MHz band (SSB/CW/AM/FM/RTTY/PSK).

➤ GREAT HARDWARE: Xiegu X5105 is equipped with a 3.6 inch large LCD screen and built-in 3800mAh large capacity battery pack. Besides, it also comes with a trestle for desktop operation.

➤ IF OUTPUT: With IF signal output (1 IF: 70.455MHz, 2 IF: 10.695MHz, 3 IF 455kHz (FM)).

➤ PORTABLE SIZE: Very small in size and ultra portable (6.3*3.9*1.8in) with an original speaker mic, convenient to carry.

➤ WHAT’S MORE: Built in ATU; Built in AF-DSP digital noise reduction processor.

Basic Specifications
Frequency range:
Receive: 500kHz-30MHz 50MHz-54MHz
Transmitting: 160 meters -6 meters (Amateur band only)
Operating mode: A1A(CW), A3E(AM),J3E(USB/LSB), F3E(FM)
minimum frequency stepping: 1Hz
Antenna impedance: 50Ω
Operating temperature range: -10℃ ~ +60℃
Frequency stability: after turn on the radio 1-60 minutes is ± 2ppm,   25℃: 1ppm/hour
supply voltage: normal: 13.8VDC + 15%, negative grounding
Operating voltage: 9.0-15.0VDC, negative grounding
Current consumption: receive: 660mA  Max transmit: 2.5A Max
Battery capacity: 3800mAh 12V

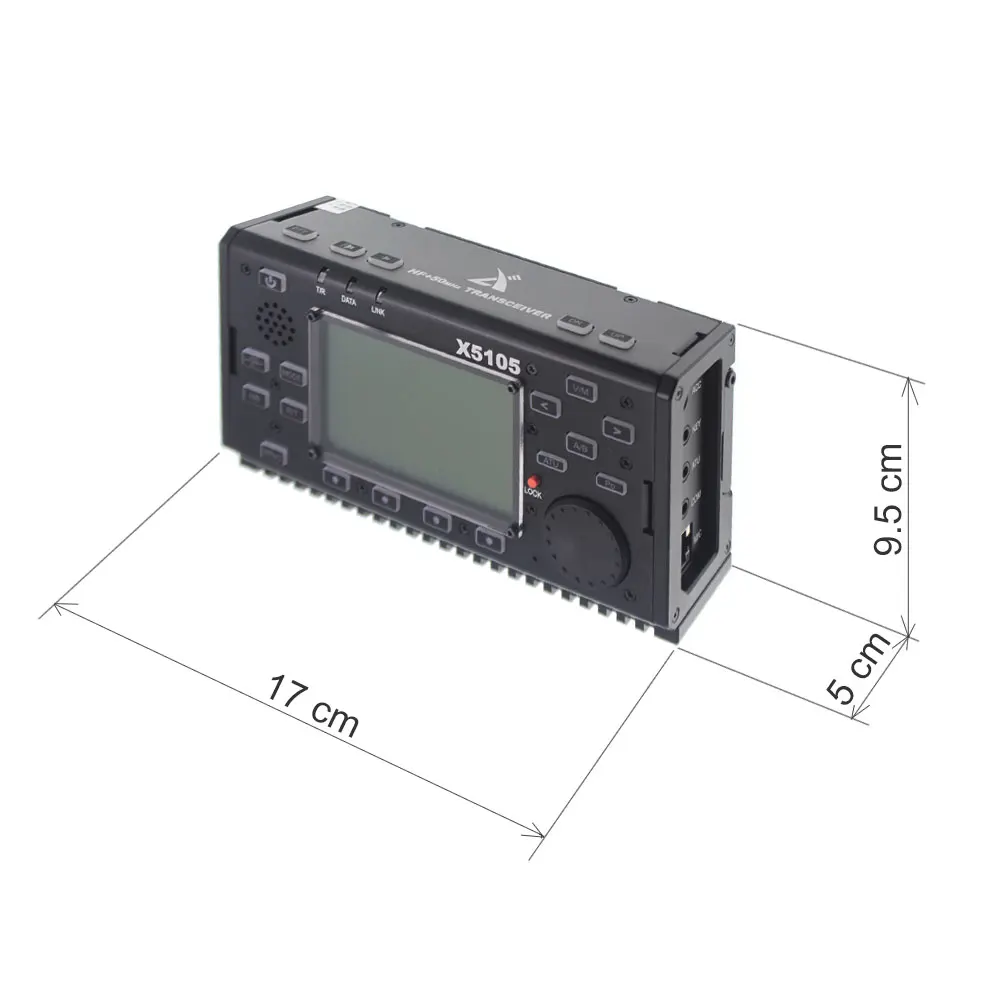

Dimensions: 160*100*46mm / 6.3*3.9*1.8in [does not include protrusion]
Weight: 0.94Kg[host only]

Receiver Parameters:
Circuit form: double-conversion superheterodyne with audio DSP
IF frequency: 1 IF: 70.455MHz, 2 IF: 10.695MHz, 3 IF 455kHz (FM)

Image rejection ratio: 70dB
IF suppression: 60 dB
Audio output: 0.6W (8Ω, ≤10% THD)
Audio output impedance: 4-16Ω
SSB-6dB: 2.4kHz/-60dB: 4.6kHz
AM-6dB: 6.0kHz/-60dB: 25.0kHz
FM-6dB: 12.0kHz/-60dB: 25.0kHz

Transmitter Parameters
Transmitter power, 5W(SSB/CW/FM), 1.5W(AM carrier), 13.8VDC
Modulation mode: SSB balanced modulation/AM low level amplitude modulation/FM Variable reactance frequency modulation
FM Maximum frequency swing: ±5kHz
spur reduction: -45dB
Carrier suppression: >40dB
Sideband spurious: >50dB
SSB frequency response: 400Hz-2800Hz(-6dB)
Microphone impedance: 200-10k(conventional 600Ω)

Package Content:
1 x Xiegu X5105 Transceiver
1 x Power Cable
1 x Speaker Mic

1 x User Manual
