Anytone AT-D878UV Plus Walkie Talkie VHF 136-174MHz UHF 400-470MHz GPS APRS Bluetooth PTT DMR Ham Radio Station With Cable
Function:
1. APRS Receive
Turn APRS Receive, if both GPS radio is positioned, the radio displays the distance and location of other radios when the radio is receiving.
The APRS will be displayed on the radio menu when the GPS radio function is “ON”.
2. The radio comes with built-in Bluetooth module, it can be connected to any Bluetooth earphones universally using the Bluetooth PTT to transmit the signal to your partner.
Features:
1.77 inch color screen
5 programmable keys
Digital DMR Tierr I & Tierr II (compatible with MOTOTRBO Level 1 and II)
4000 Memories, 10000 Talkgroups, 150000 user entries (contacts)
250 Zones
2 slots and all color codes
Built-in Bluetooth module in the car radio with Bluetooth PTT
GPS
Analog and DMR APRS
VOX
Recording and retransmission of received signals (Only in DMR)
FM radio 87.5-108 MHz reception only
1750Hz tone of
CTCSS, DCS
DTMF, 2 tone, 5 tone
Frq step: 2.5 / 5 / 6.25 / 10 / 12.5 / 20/25/30/50 KHz
3300 mAh Li-Ion battery pack
Alarm time
1000 HZ / 1450Hz / 1750Hz / 2100Hz TBST Seletable
Technical specifications:
|
General |
||
|
Frequency range |
VHF: 136-174 MHz UHF: 400-470 MHz |
|
|
Memory channels |
4000 |
|
|
Spacing Between Channels |
25 KHz (Broadband), 12.5 KHz (Narrow Band) |
|
|
Phase-locked Step |
5.0 / 6.25 KHz |
|
|
Frequency stability |
± 5ppm |
|
|
Operating temperature |
– ° C to + 55 ° c |
|
|
Operating voltage |
7.4 V DC ± 20% |
|
|
dimensions |
129 * 61 * 39mm |
|
|
Weight |
282g (with battery, antenna |
|
|
Receiving party |
||
|
|
Bandwidth |
Narrow band |
|
Sensitivity (12dB SINAD |
≤ 25 & micro; V |
≤ 35 & micro; V |
|
Digital Sensitivity |
0.3uV / -117.4dBm (BER 5%) 0.7uV / -110dBm (BER 1%) |
|
|
Adjacent Channel Selectivity |
≥70dB |
≥ 60db |
|
Spurious emissions |
≤-57dB |
≤-57dB |
|
Spurious Rejection |
≥70dB |
≥70dB |
|
Block |
84dB |
|
|
Hum and noise |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio Output Power |
1000 mW / 16 ohm |
|
|
Transmission Parts |
||
|
|
Bandwidth |
Narrow band |
|
Output power |
VHF: 7/5 / 2.5 / 1 W, UHF: 6/5 / 2.5 / 1 W |
|
|
Modulation mode |
± 5. 0 KHz 25 KHz |
± 5. 0 KHz 12.5 KHz |
|
Adjacent Channel Selectivity |
≥70dB |
≥ 60db |
|
Hum and noise |
≥40dB |
≥36dB |
|
Spurious emissions |
≤-36dB |
≤-36dB |
|
4FSK of Digital Modulation |
12.5 KHz (data) 7K60FXD 12.5 KHz (data + voice) 7K60FXE |
|
|
Audio distortion |
≤5% |
|
Note: The above specifications are subject to change without notice due to enhancement technology

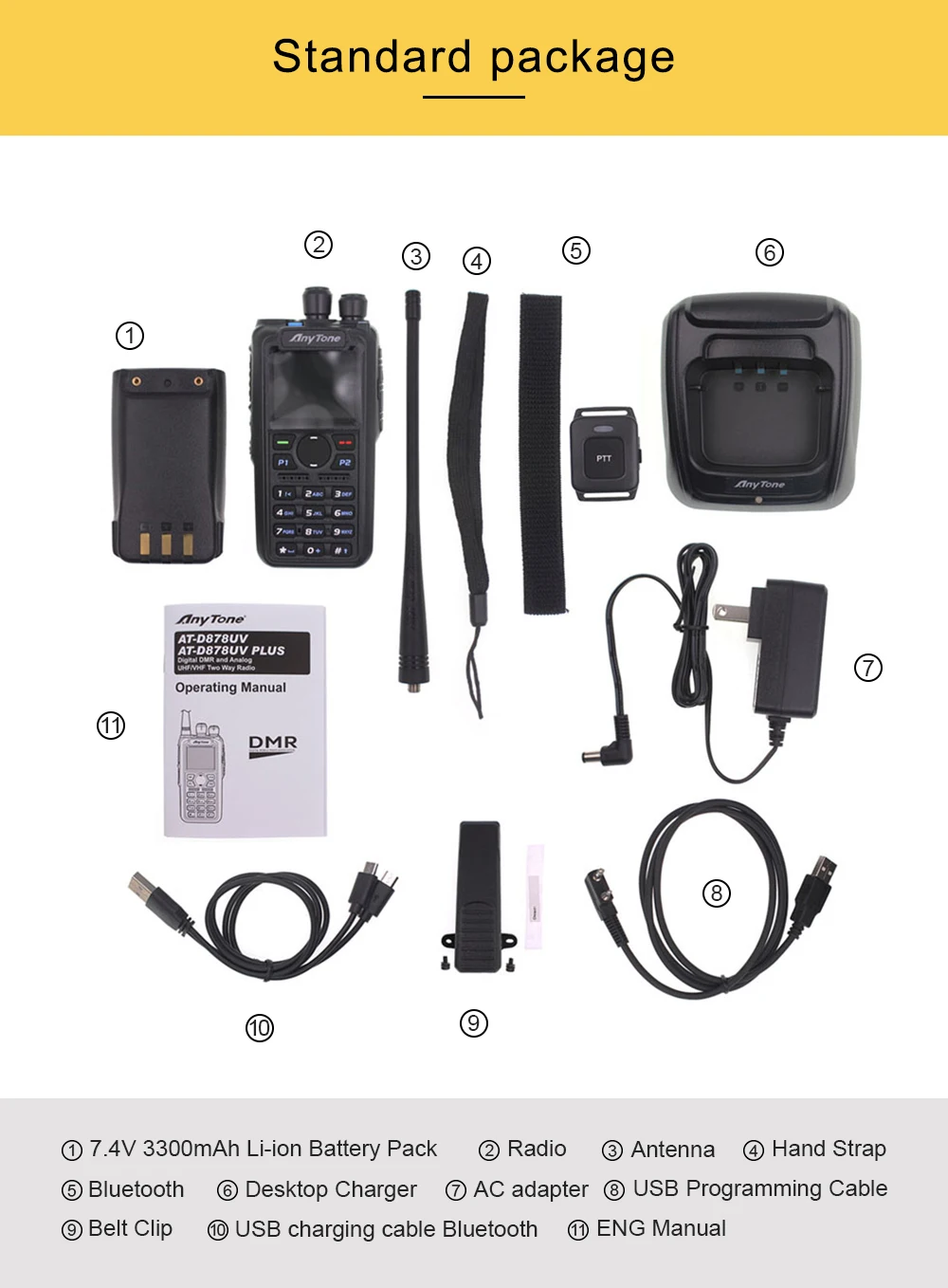

Package Contents:
- 1 × Anytone AT-D878UV Plus Radio
- 1 × 7.4 V 3300 mAh Li-Ion Battery Pack
- 1 × Bluetooth PTT
- 1 × USB Programming Cable
- 1 × Antenna
- 1 × Belt clip
- 1 × Desktop Charger with AC adapter
- 1 × Radio ENG Manual
- 1 × Bluetooth ENG Manual
- 1 × Hand strap
Optional accessories:
1 x Battery Eliminator
1 x Soft Case
1 x Bluetooth Earphone
